Main cable harness for Fly 4T 3V ie from 2015

Main cable harness

1

Cable harness

1D001167

$734,67 Unit Price incl. VAT

1

Cable harness

680261

$843,80 Unit Price incl. VAT

2

Hose clamp 2,7x132

640879

$0,92 Unit Price incl. VAT

3

Fuse holder

642405

$10,00 Unit Price incl. VAT

4

Fuse 20A

580561

$0,42 Unit Price incl. VAT

5

Reed fuse 10A

292507

$0,42 Unit Price incl. VAT

6

Fuse 7,5A

252945

$0,42 Unit Price incl. VAT

7

Reed fuse 5a

293256

$0,42 Unit Price incl. VAT

8

Plug connect diagnos ECU

582928

$1,01 Unit Price incl. VAT

9

Lock-strap L=180mm

145298

$0,08 Unit Price incl. VAT

10

Lock-strap L=277

257134

$0,25 Unit Price incl. VAT

11

Pipes/cables retainer spring

CM013202

$1,10 Unit Price incl. VAT

12

Hose clamp 2,7x132

640879

$0,92 Unit Price incl. VAT

13

Non return spring L=12

CM006905

$1,35 Unit Price incl. VAT

14

Bracket

642335

$5,38 Unit Price incl. VAT

15

Cable support bracket

643403

$10,00 Unit Price incl. VAT

16

Non return spring L=12

CM006905

$1,35 Unit Price incl. VAT

17

Spring for connector

639560

$0,67 Unit Price incl. VAT

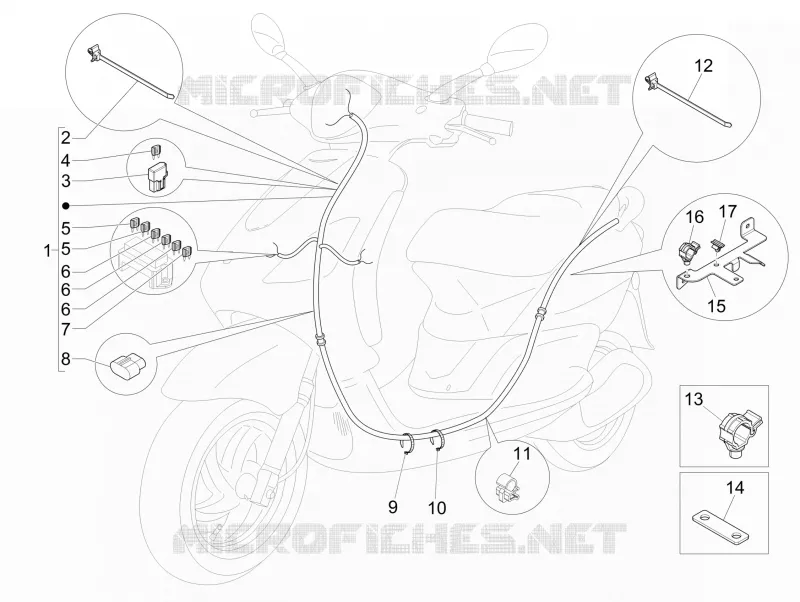

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
