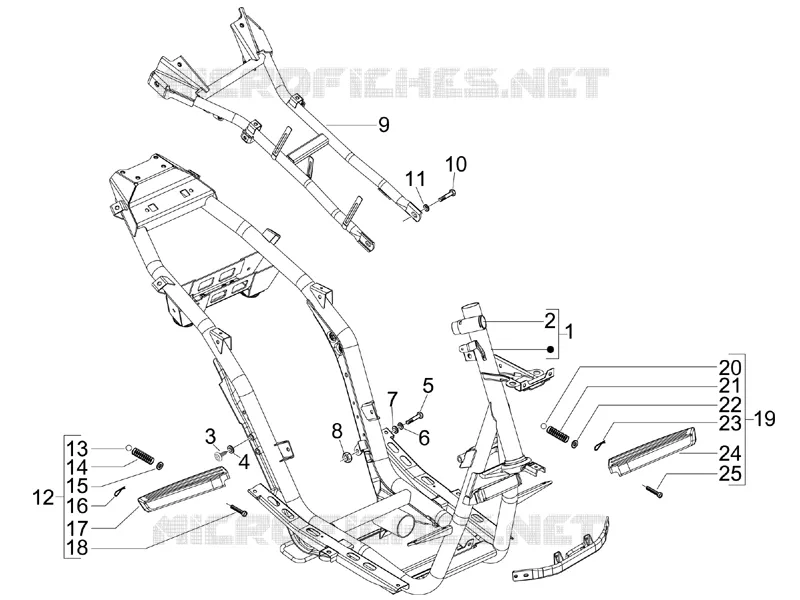

Frame/bodywork
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
Frame
6242885
Not Available
2
Lock support
298604
$16,40 Unit Price incl. VAT
3
Hex socket screw
582428
$0,34 Unit Price incl. VAT
4
Spring washer 16x8,2x2,2
834187
$0,16 Unit Price incl. VAT
5
screw
015643
$2,04 Unit Price incl. VAT
6
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
7
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
8
Nut M8x6,5
020108
$0,08 Unit Price incl. VAT
9
Frame
6241125
$62,14 Unit Price incl. VAT
10
Bolt
031115
$2,95 Unit Price incl. VAT
11
Spring washer 16x8,2x2,2
834187
$0,16 Unit Price incl. VAT
12
RH rear footrest
654145000C
Not Available
12
RH rear footrest
656598000C
$23,91 Unit Price incl. VAT
13
Ball D6
295591
$5,38 Unit Price incl. VAT
14
Premisphere spring
295590
$4,82 Unit Price incl. VAT
15
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
16
Elastic spring
259933
$0,08 Unit Price incl. VAT
17
Gasket
975559
Not Available
18
screw
315092
Not Available
19
LH rear footrest
656597000C
Not Available
19
LH rear footrest
654144000C
Not Available
20
Ball D6
295591
$5,38 Unit Price incl. VAT
21
Premisphere spring
295590
$4,82 Unit Price incl. VAT
22
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
23
Elastic spring
259933
$0,08 Unit Price incl. VAT
24
Gasket
975558
Not Available
25
screw
315092
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
