Flywheel magneto cover - Oil filter FOR Runner ST 4T E3 FROM 2013

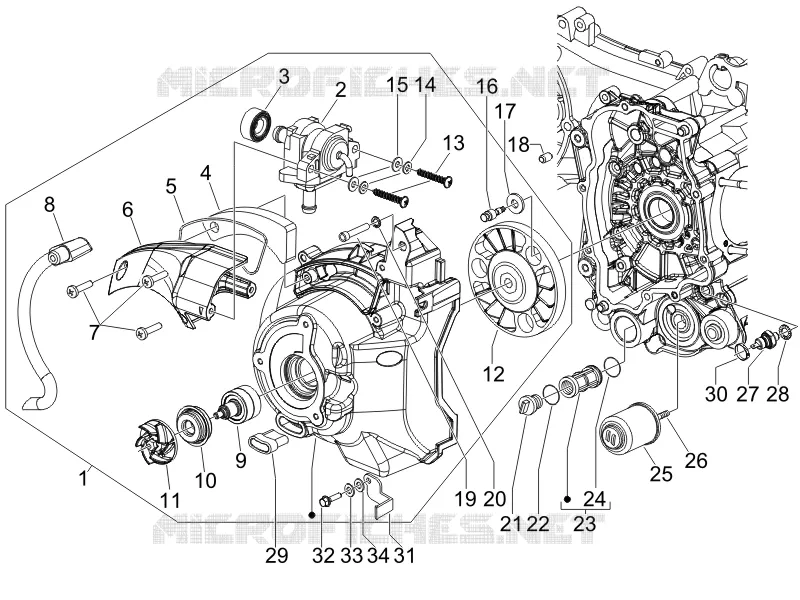

Flywheel magneto cover - Oil filter

1

Flywheel cover cpl.

8482585

$183,00 Unit Price incl. VAT

2

SAS valve

82731R

$89,76 Unit Price incl. VAT

3

Gasket

831256

$4,82 Unit Price incl. VAT

4

Filter

831257

$3,78 Unit Price incl. VAT

5

Gasket

831258

$4,82 Unit Price incl. VAT

6

Cover

831255

$7,69 Unit Price incl. VAT

7

Screw M5x22

828662

$0,25 Unit Price incl. VAT

8

pipe

848080

$43,65 Unit Price incl. VAT

9

Water pump shaft assy.

8456335

$25,10 Unit Price incl. VAT

10

Gasket ring

842595

Not Available

11

Water pump impeller cpl.

844730

$3,01 Unit Price incl. VAT

12

Pump impeller drive key

872908

$7,70 Unit Price incl. VAT

13

Self tapping screw L=35 mm

296458

$2,25 Unit Price incl. VAT

14

Washer 5.3x10x10

006965

$0,08 Unit Price incl. VAT

15

Plain washer 12x5.2x1

006078

$0,08 Unit Price incl. VAT

16

Special screw

82869R

$12,36 Unit Price incl. VAT

17

Washer

828535

$2,99 Unit Price incl. VAT

18

Locating dowel Ã˜7,5x12

277916

$0,34 Unit Price incl. VAT

19

screw

828493

$2,95 Unit Price incl. VAT

20

Washer 5.3x10x10

006965

$0,08 Unit Price incl. VAT

21

Oil filter plug

82823R

Not Available

22

O-ring 31,47x1,78

285536

$0,92 Unit Price incl. VAT

23

Intake oil filter

483841

$3,55 Unit Price incl. VAT

24

O-ring 20,35x1,78

288474

$0,08 Unit Price incl. VAT

25

Oil filter

82635R

$12,36 Unit Price incl. VAT

26

Special screw

483776

$1,49 Unit Price incl. VAT

27

Oil pressure sensor

641541

Not Available

28

Washer 10,5x17x1,5

AP9150472

$4,82 Unit Price incl. VAT

29

Cover

825529

$5,38 Unit Price incl. VAT

30

Hose clamp

825481

$3,38 Unit Price incl. VAT

31

Cable support bracket

639531

$1,43 Unit Price incl. VAT

32

Screw M5x10

018575

$2,95 Unit Price incl. VAT

33

Washer

828535

$2,99 Unit Price incl. VAT

34

Spring washer 8,5x5,1x1,5

016405

$0,08 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
