Engine displacement
500
2
Model
NEXUS
3
Year
2007
4
Trim
Nexus -SP- E3
5
Parts Catalog
Rear suspension - Shock absorber/s
6

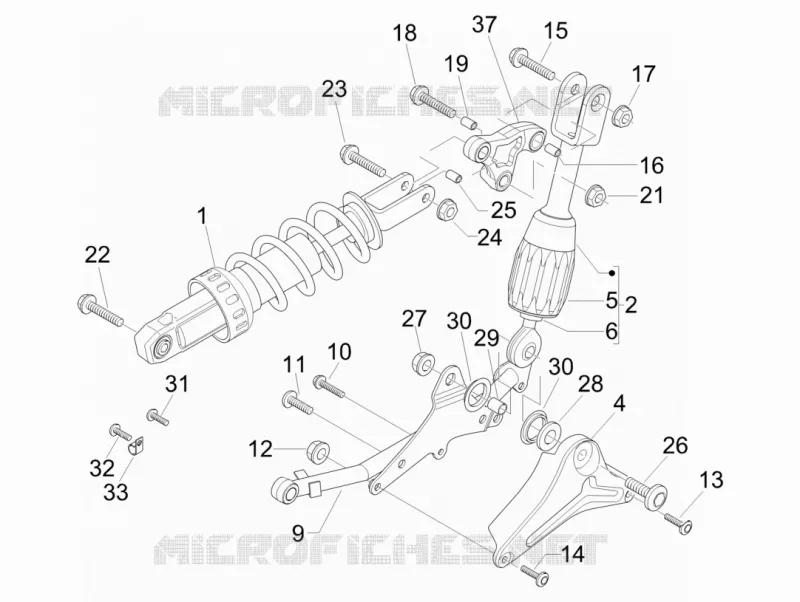

Parts Diagram
Parts Catalog
Crankcase cover - Crankcase cooling
by
Locks
Rear suspension - Shock absorber/s
1
2
4
5
6
9
10
11
12
13
14
15
16
17
18
19
21
22
23
24
25
26
27
28
29
30
30
31
32
33
37
1
Rear shock absorber
56159R
$229,34 Unit Price incl. VAT
2
Swinging unit coupling complete strut
647823
Not Available
4
Engine union
842601
Not Available
5
Suspension strut ring nut
842456
Not Available
6
O-ring
942150
Not Available
9
Suspension connection reinforcement pipe
842533
Not Available
10
Hex socket screw
828340
Not Available
11
Hex socket screw
845590
$0,92 Unit Price incl. VAT
12
Self locking nut
597565
$0,50 Unit Price incl. VAT
13
screw TBEI M6 L60
975669
$3,65 Unit Price incl. VAT
14
screw
975830
Not Available
15
screw
975119
Not Available
16
Spacer
975118
$2,91 Unit Price incl. VAT
17
Nut
564878
$2,99 Unit Price incl. VAT
18
screw
647317
$1,71 Unit Price incl. VAT
19
Spacer
975123
$3,80 Unit Price incl. VAT
21
Nut
975695
$0,44 Unit Price incl. VAT
22
screw TEF M10X45
967384
$3,65 Unit Price incl. VAT
23
Screw w/ flange M10
268158
$1,26 Unit Price incl. VAT
24
Nut
564878
$2,99 Unit Price incl. VAT
25
Spacer
975118
$2,91 Unit Price incl. VAT
26
screw
621933
Not Available
27
Nut
621934
Not Available
28
Washer
841140
$3,65 Unit Price incl. VAT
29
Spacer
842590
Not Available
30
Dust cover
975800
Not Available
31
screw
015946
$2,95 Unit Price incl. VAT
32
screw
263381
$4,62 Unit Price incl. VAT
33
Hose clamp
269273
$3,65 Unit Price incl. VAT
37
Rear suspension rocker
647828
Not Available
