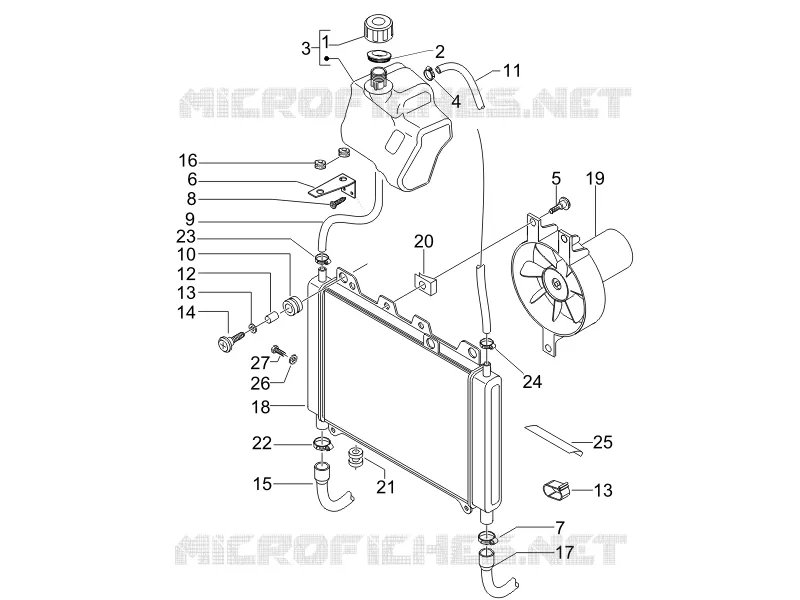

Cooling system for Nexus -SP- E3 from 2007

Cooling system

1

Expansion tank plug

623673

$15,97 Unit Price incl. VAT

2

Fuel tank gasket

620737

$4,82 Unit Price incl. VAT

3

Tank

975031

Not Available

4

Hose clamp

CM001914

$0,75 Unit Price incl. VAT

5

Screw M6x16

272836

$3,70 Unit Price incl. VAT

5

Screw M6x16

CM179301

$0,25 Unit Price incl. VAT

6

Bracket

975592

$2,58 Unit Price incl. VAT

7

Hose clamp

CM001915

$1,03 Unit Price incl. VAT

7

Complete fuel pump assembly

641131

Not Available

8

TBCIC Screw

270793

$0,08 Unit Price incl. VAT

9

Tank-cooler feed pipe

CM007007

$20,60 Unit Price incl. VAT

9

Tank-cooler feed pipe

620036

Not Available

10

Upper rubber

351782

$0,34 Unit Price incl. VAT

11

Cooler-tank return pipe

975696

$3,23 Unit Price incl. VAT

12

Spacer

273288

$1,01 Unit Price incl. VAT

13

Pipes/cables retainer spring L=16

CM006907

$1,51 Unit Price incl. VAT

13

Washer d6,2x20x1

013092

$0,17 Unit Price incl. VAT

14

Metric screw M6x20

259830

$0,09 Unit Price incl. VAT

14

Metric screw TBC

CM179302

$0,55 Unit Price incl. VAT

15

Radiator-pump pipe fitting link

975697

$36,58 Unit Price incl. VAT

16

Lower rubber

258904

$0,25 Unit Price incl. VAT

17

Thermostat-cooler pipe fitting link

975698

Not Available

18

Water cooler

57311R

$93,31 Unit Price incl. VAT

18

Water cooler

656528

$77,93 Unit Price incl. VAT

19

Electric fan

58170R

Not Available

19

Complete electric fan

640389

Not Available

19

Fan engine

621030

Not Available

20

Spring plate M6

254485

$0,34 Unit Price incl. VAT

21

Lower rubber

258904

$0,25 Unit Price incl. VAT

22

Hose clamp

CM001908

$3,65 Unit Price incl. VAT

23

Hose clamp

CM001916

$3,65 Unit Price incl. VAT

24

Hose clamp

CM001921

$3,65 Unit Price incl. VAT

25

Guard

580160

Not Available

26

Copper gasket

168077

$3,65 Unit Price incl. VAT

27

Cover

621365

$4,82 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
