1
Engine displacement
250
2
Model
NEXUS
3
Year
2006
4
Trim
Nexus -SP- E3
5
Parts Catalog
Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Windshield - Glass
by
Remote control switches - Battery - Horn
Fork/steering tube - Steering bearing unit
7
33
32
31
28
27
26
24
23
22
21
17
15
14
13
12
11
10
9
8
6
4
1
1
Front fork assembly
647438
Not Available
4
screw (Kayaba)
599262
$3,65 Unit Price incl. VAT
6
Fork stanchion KAIABA
601307
Not Available
7
CILINDRO FORCELLA
601308
$9,56 Unit Price incl. VAT
8
RONDELLA PIANA
599270
$3,65 Unit Price incl. VAT
9
screw (Kayaba)
599269
$3,65 Unit Price incl. VAT
10
RH sleeve
497006
Not Available
11
FODERO sx
497005
$94,98 Unit Price incl. VAT
12
PARAOLIO FORCELLA
601310
$25,95 Unit Price incl. VAT
13
ANELLO
497132
$3,65 Unit Price incl. VAT
14
Dust cover
497131
Not Available
15
OIL SEAL COGUAR FORK
497011
$4,82 Unit Price incl. VAT
17
Fork spring
601309
Not Available
21
MOLLA
599421
$0,83 Unit Price incl. VAT
22
O RING FORCELLA
497017
$4,82 Unit Price incl. VAT
23
TAPPO STELO FORCELLA
601312
$7,11 Unit Price incl. VAT
24
screw
600270
Not Available
26
COPERCHIO SOSPENSIONE ANT.
599931
$5,21 Unit Price incl. VAT
27
GOMMINO PASSACAVI
975715
$1,64 Unit Price incl. VAT
28
Steering bearing assy.
600921
Not Available
29
Lower steering bearing
CM061304
Not Available
30
Missing description
000000
Not Available
31
Steering tube ring nut
011109
Not Available
31
GHIERA TUBO STERZO
0111094
$2,60 Unit Price incl. VAT
32
RONDELLA FR.SUP.STERZO.
582787
$3,65 Unit Price incl. VAT
33
COLLARINO DI PROTEZIONE GAMBALE FORCELLA
975683
$2,13 Unit Price incl. VAT

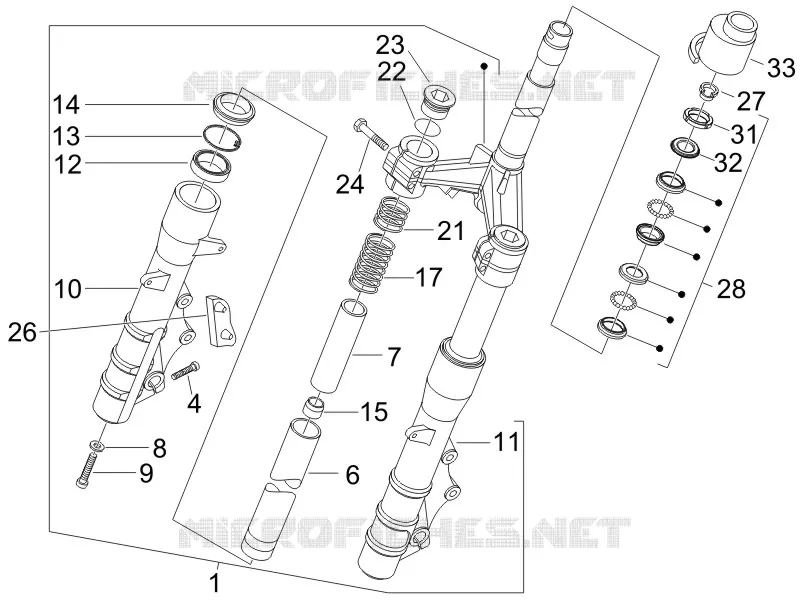

Find the detailed Fork/steering tube - Steering bearing unit GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
