1
Engine displacement
250
2
Model
NEXUS
3
Year
2006
4
Trim
Nexus -SP- E3
5
Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Rear cover - Splash guard
by
Driving pulley
Cooling system
15
14
9
27
26
24
23
22
21
20
19
18
17
16
13
13
12
11
10
8
7
6
5
4
3
2
1
1
TAPPO SERB.LIQUIDO RAF
623673
$15,97 Unit Price incl. VAT
2
GUARNIZIONE SERBATOIO ESP.
620737
$4,82 Unit Price incl. VAT
3
Tank
975031
Not Available
4
FASCETTA STRINGITUBO
CM001914
$0,75 Unit Price incl. VAT
5
VITE METRICA CON INT.A CROCE M6x16.
272836
$3,70 Unit Price incl. VAT
6
STAFFA SERBATOIO LIQUIDO RAFFR.TO
975592
$2,58 Unit Price incl. VAT
7
FASCETTA STRINGITUBO (D.28,6 S.0,6 L.7)
CM001915
$1,03 Unit Price incl. VAT
8
VITE AUTOFIL. TBCIC 3,8x16
270793
$0,08 Unit Price incl. VAT
9
TUBO MANDA.RADIATORE/SERB.LIQUIDO
CM007007
$20,60 Unit Price incl. VAT
9
Tank-cooler feed pipe
620036
Not Available
10
TAMPONE ELASTICO
351782
$0,34 Unit Price incl. VAT
11
TUBO RIT.RADIATORE/SERBATOIO LIQUIDO
975696
$3,23 Unit Price incl. VAT
12
DISTANZIALE
273288
$1,01 Unit Price incl. VAT
13
MOLLETTA RITEGNO TUBI/CAVI
CM006907
$1,51 Unit Price incl. VAT
13
RONDELLA D6,2XD20X1
013092
$0,17 Unit Price incl. VAT
14
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
15
CYLINDER HEAD-RADIATOR JOINT PIPE
623999
Not Available
16
TAMPONE
258904
$0,25 Unit Price incl. VAT
17
CYLINDER HEAD-RADIATOR JOINT PIPE
624000
Not Available
18
GR.RADIATORI ACQUA
57311R
$93,31 Unit Price incl. VAT
19
Electric fan
58170R
Not Available
19
Complete electric fan
640389
Not Available
19
Fan engine
621030
Not Available
20
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
21
TAMPONE
258904
$0,25 Unit Price incl. VAT
22
FASCETTA STRINGITUBO(D.30,8 S.0,6 L.7)
CM001908
$3,65 Unit Price incl. VAT
23
Hose clamp
CM001916
$3,65 Unit Price incl. VAT
24
FASCETTA STRINGITUBO
CM001921
$3,65 Unit Price incl. VAT
26
GUARNIZIONE INIETTORE
168077
$3,65 Unit Price incl. VAT
27
TAPPO M14X1,5
621365
$4,82 Unit Price incl. VAT

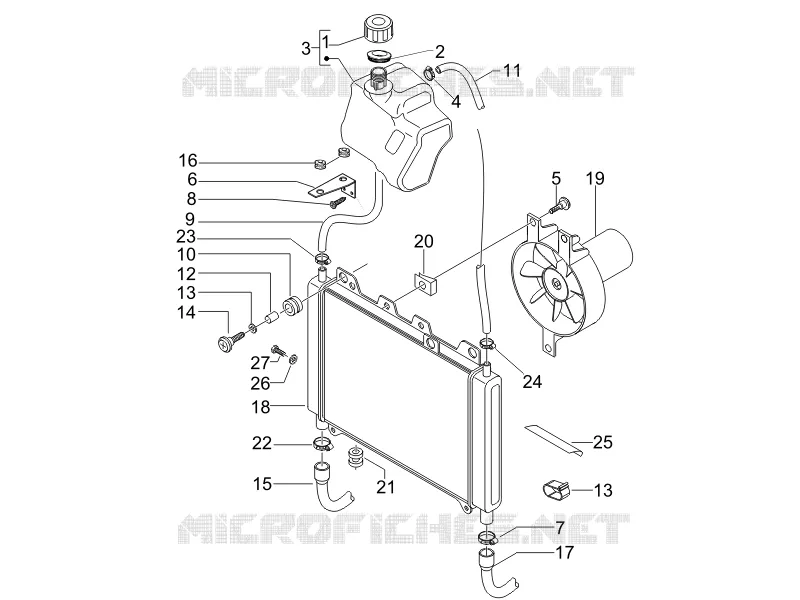

Find the detailed Cooling system GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
