by

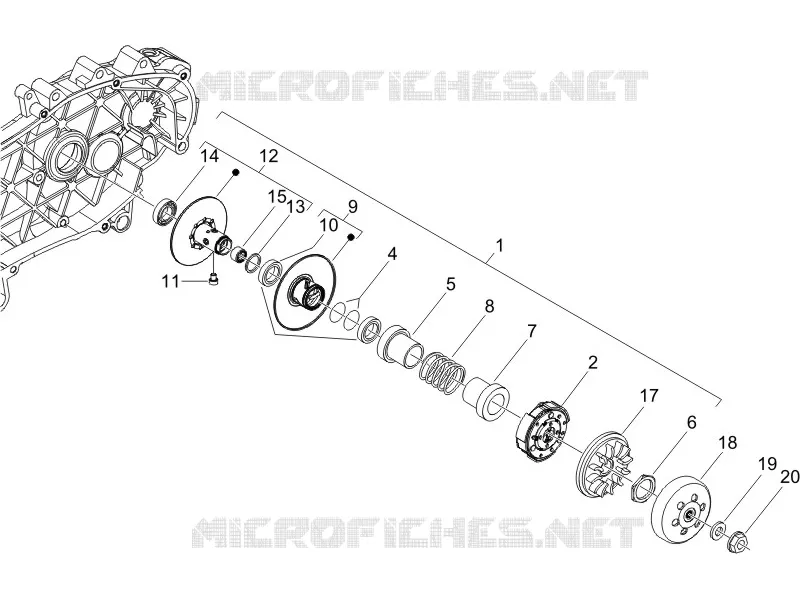

Driven pulley
1
2
4
5
6
7
8
9
10
11
12
13
14
15
17
18
19
20
1
Clutch driven pulley assy.
82887R
Not Available
1
DRIVEN PULLEY WITH CLUTCH
82870R
Not Available
2
Centrifugal clutch assembly
CM144005
Not Available
4
Gasket
430585
$4,89 Unit Price incl. VAT
5
Cup
431093
Not Available
6
Ring nut
433232
$2,31 Unit Price incl. VAT
7
Clutch side cap
487936
$5,73 Unit Price incl. VAT
8
Variator spring
825726
$5,64 Unit Price incl. VAT
9
Adjustable pulley, half
827499
Not Available
9
Sec.sliding sheave
827595
Not Available
10
Gasket ring
431089
$2,55 Unit Price incl. VAT
11
Guide pin L=12,5
828717
$0,34 Unit Price incl. VAT
12
Fixed driven half pulley
830580
$69,28 Unit Price incl. VAT
13
Snap ring
483226
$0,72 Unit Price incl. VAT
14
Bearing 17x30x7
82753R
$19,17 Unit Price incl. VAT
15
Roller cage 20x29x18
82518R
$12,62 Unit Price incl. VAT
17
Fan
482305
$9,99 Unit Price incl. VAT
18
Clutch drum
844049
Not Available
19
Flat washer 22x12,1x1
274246
$0,34 Unit Price incl. VAT
20
Nut M12x1.25
486324
$0,50 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
