1
Engine displacement
125
2
Model
NEXUS
3
Year
2008
4
Trim
Nexus E3
5
Parts Catalog
Stand/s
6

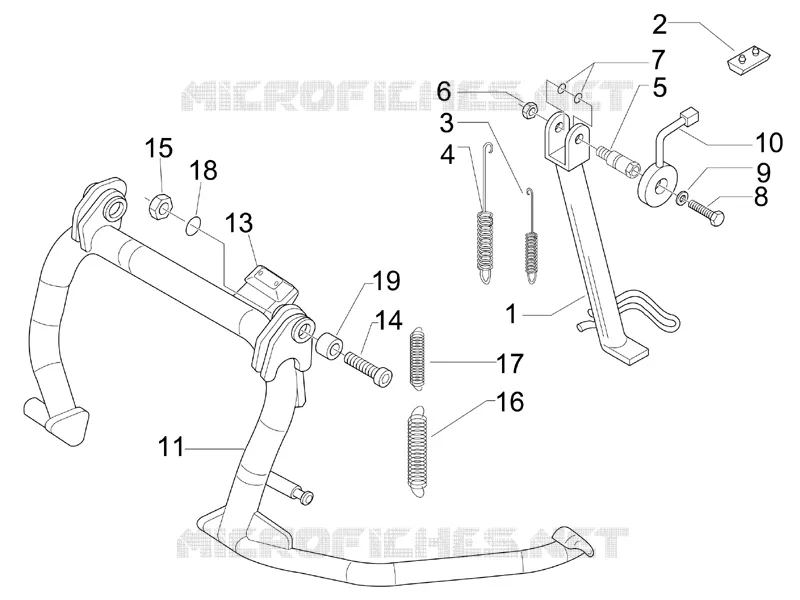

Parts Diagram
Parts Catalog
Frame/bodywork
by
Central cover - Footrests
Stand/s
1
2
3
4
5
6
7
8
9
10
11
13
14
15
16
17
18
19
1
Side Stand with i.p.
647473
$19,22 Unit Price incl. VAT
2
Stop buffer
164245
$0,97 Unit Price incl. VAT
3
Spring
295788
$4,82 Unit Price incl. VAT
4
Spring
295789
$4,82 Unit Price incl. VAT
5
Side stand fixing screw.
647595
Not Available
6
Self locking nut M10
232108
Not Available
6
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
7
Gasket
191189
$0,17 Unit Price incl. VAT
8
Hex socket screw M5x16
292889
Not Available
9
Washer 5,3x10x0
012532
$0,67 Unit Price incl. VAT
10
Button for side stand
639542
$41,85 Unit Price incl. VAT
11
CENTRAL STAND X9
601893
Not Available
11
Central stand
56449R
Not Available
13
Pad
272426
Not Available
14
Hex screw M10x130
030115
$1,85 Unit Price incl. VAT
15
Self locking nut M10
232108
Not Available
15
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
16
Lateral stand spring
582851
$4,89 Unit Price incl. VAT
17
Internal lateral stand spring
582850
$4,89 Unit Price incl. VAT
18
O-ring
273754
$0,16 Unit Price incl. VAT
19
Spacer
582298
$3,27 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
