Fuel tank for GP Centenario from 2009

Fuel tank

1

Left fuel tank

656966

Not Available

2

Plug

259832

$1,10 Unit Price incl. VAT

2

Tank cap

656872

Not Available

3

Tank cover gasket

258160

$1,00 Unit Price incl. VAT

4

Right fuel tank

655887

Not Available

5

Indicator fuel level

CM025712

Not Available

6

Gasket

576542

Not Available

7

Ring nut

576546

$4,71 Unit Price incl. VAT

8

Fuel pump

641251

$715,28 Unit Price incl. VAT

9

Fuel filter

639333

Not Available

10

Metric screw M6x22

CM179201

$0,34 Unit Price incl. VAT

11

Hose clamp

654184

$5,20 Unit Price incl. VAT

12

Tank pipe

654820

Not Available

13

Gasket ring

654479

$0,50 Unit Price incl. VAT

14

Hose clamp

CM001908

$3,65 Unit Price incl. VAT

15

Fuel pipe protection

654477

$8,92 Unit Price incl. VAT

16

Self tapping screw

297498

$0,08 Unit Price incl. VAT

17

Screw M6x10

959614

$3,70 Unit Price incl. VAT

18

Washer

078307

$0,17 Unit Price incl. VAT

19

Washer

297029

$3,70 Unit Price incl. VAT

20

Hose

656875

$15,98 Unit Price incl. VAT

21

Hose clamp

CM001923

$0,99 Unit Price incl. VAT

22

Tank breather pipe

CM011904

$20,60 Unit Price incl. VAT

23

Volet

CM179007

Not Available

24

Tank breather pipe

CM011904

$20,60 Unit Price incl. VAT

25

Delivery fuel pipe

654241

$35,10 Unit Price incl. VAT

26

Fuel pipe complete with joints

655789

Not Available

26

Fuel return hose

654243

Not Available

27

Hose clamp

623743

Not Available

28

screw

018509

$2,25 Unit Price incl. VAT

29

Washer

709141

Not Available

30

Lock-strap L=277

257134

$0,25 Unit Price incl. VAT

31

Lock-strap L=180mm

145298

$0,08 Unit Price incl. VAT

32

Float chamber

622235

$1,05 Unit Price incl. VAT

33

Connection

654818

Not Available

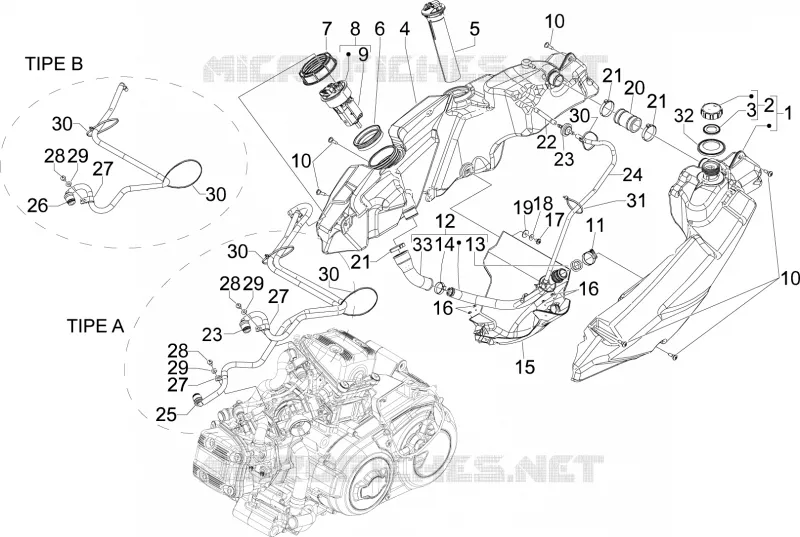

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
