Remote control switches - Battery - Horn for GP Centenario from 2009

Remote control switches - Battery - Horn

1

Starter relay

640393

Not Available

2

Flexible support

582906

Not Available

3

Fuse 30A

581440

Not Available

4

Fuse 40A

640394

$0,19 Unit Price incl. VAT

5

Rem. control switch 12V-30A

58099R

$36,86 Unit Price incl. VAT

6

Switch electromagnetic switch 12V-40/15A

292332

$21,37 Unit Price incl. VAT

7

Battery Yuasa YTX14-BS 12V-12Ah (150x87x145)

638733

$387,53 Unit Price incl. VAT

8

Battery closing plate

653318

Not Available

9

Screw M6x16

272836

$3,70 Unit Price incl. VAT

10

Spring plate M6

254485

$0,34 Unit Price incl. VAT

11

Pad

583310

$1,60 Unit Price incl. VAT

12

Pad

583310

$1,60 Unit Price incl. VAT

13

Warning horn 12V

640474

Not Available

14

Screw w/ flange M6x16

434541

$0,09 Unit Price incl. VAT

15

Decoder

829121

Not Available

16

Screw w/ flange M6x25

414837

Not Available

17

Spring washer 6,4x11,8x1

016406

$0,34 Unit Price incl. VAT

18

Flat washer 16x6,5x1,5

013880

$0,08 Unit Price incl. VAT

19

Immobilizer antenna

58200R

Not Available

20

Relay fixing bracket

639640

$7,23 Unit Price incl. VAT

21

Screw w/ flange M6x10

969296

$0,16 Unit Price incl. VAT

22

Spring plate M6

254485

$0,34 Unit Price incl. VAT

23

Pipes/cables retainer spring

CM013202

$1,10 Unit Price incl. VAT

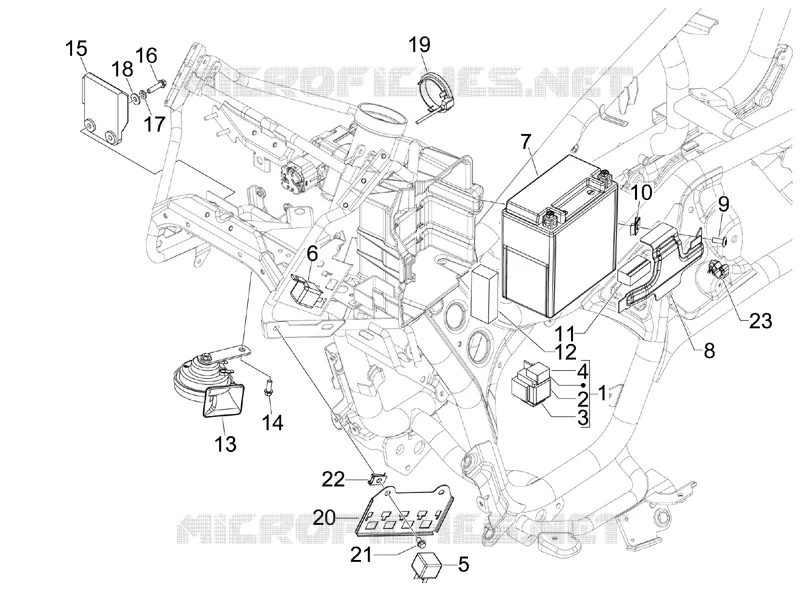

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
