Handlebars - Master cil. for GP from 2009

Handlebars - Master cil.

1

Left half handlebar

653174

$140,77 Unit Price incl. VAT

2

Right half handlebar

653175

$140,77 Unit Price incl. VAT

3

Hex socket screw

654483

$1,21 Unit Price incl. VAT

4

Half-handlebar support

653343

$319,91 Unit Price incl. VAT

5

screw

583480

$0,84 Unit Price incl. VAT

6

Special cap screw

564632

$3,65 Unit Price incl. VAT

7

Flat elastic washer with internal toothing 17x10,3x2

012543

$0,08 Unit Price incl. VAT

8

Handlebar insert

654203

$17,51 Unit Price incl. VAT

9

Hex socket screw

654484

$0,94 Unit Price incl. VAT

10

(Heng Tong) Left brake pump

650714

$116,59 Unit Price incl. VAT

10

Pompa freno SX (Brembo)

CM081502

Not Available

11

Leva freno SX (Brembo)

649166

$88,04 Unit Price incl. VAT

11

(Heng Tong) Left brake lever

665645

Not Available

12

Left microswitch

649318

$16,05 Unit Price incl. VAT

13

(Heng Tong) Right brake pump

650715

$119,13 Unit Price incl. VAT

13

(Brembo) Right brake pump

601646

Not Available

14

(Brembo) Right brake lever

649165

$88,04 Unit Price incl. VAT

14

(Heng Tong) Right brake lever

665646

Not Available

15

Right microswitch

649317

$16,05 Unit Price incl. VAT

16

Hose

975633

Not Available

17

RH hand grip

583094

Not Available

18

LH hand grip

581900

Not Available

19

Anti vib.weight trailing

673243

$24,38 Unit Price incl. VAT

19

Anti vib.weight trailing

582034

$14,89 Unit Price incl. VAT

20

screw M6x55

271434

Not Available

21

Upper handlebar cover

6565120090

Not Available

21

Upper handlebar cover

656512

Not Available

22

Screw M5x10

018575

$2,95 Unit Price incl. VAT

23

Handlebar lower frame

65316900XN2

Not Available

23

Handlebar lower frame

653169

Not Available

23

Handlebar lower cover

65316900RR

Not Available

23

Handlebar lower cover

65316900BR

Not Available

24

Screw w/ flange M6x16

434541

$0,09 Unit Price incl. VAT

25

Brake lever pin

666266

Not Available

26

Brake lever pin

666266

Not Available

27

RH pump cover

650966

$6,79 Unit Price incl. VAT

28

LH pump cover

650965

$6,79 Unit Price incl. VAT

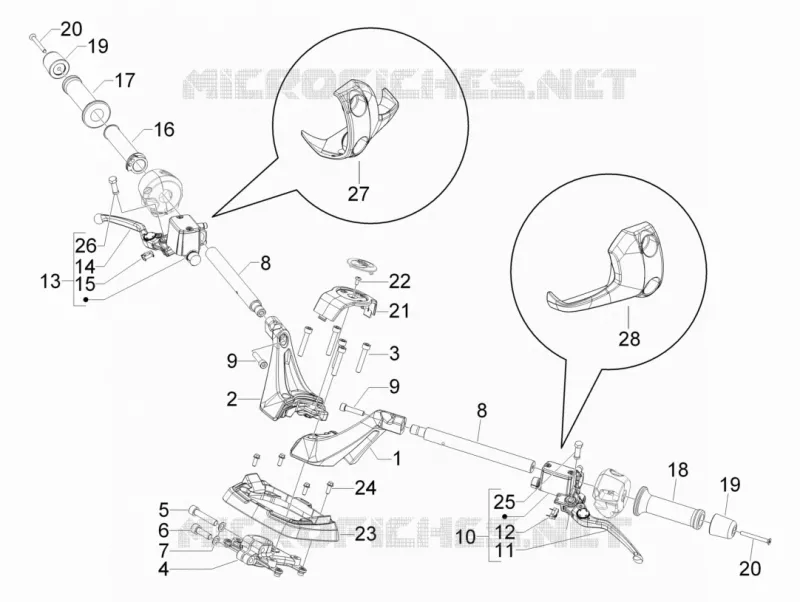

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
