1
Engine displacement
800
2
Model
GP
3
Year
2009
4
Trim
GP
5
Parts Catalog
Main cable harness
6
Parts Diagram
Parts Catalog
Transmission assembly
by
Silencer
Main cable harness
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
1
Wiring harness
640240
$161,84 Unit Price incl. VAT
2
Cap
255256
$3,39 Unit Price incl. VAT
3
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
4
Hose clamp
641143
$0,83 Unit Price incl. VAT
5
Hose clamp
825481
$3,38 Unit Price incl. VAT
6
Non return spring l=27
CM006904
$0,25 Unit Price incl. VAT
7
Non return spring L=12
CM006905
$1,35 Unit Price incl. VAT
8
Hose clamp
217280
Not Available
9
Frame harness
641332
Not Available
10
Fuse 7,5A
252945
$0,42 Unit Price incl. VAT
10
Reed fuse 5a
293256
$0,42 Unit Price incl. VAT
10
Fuse 15A
290860
$5,73 Unit Price incl. VAT
10
Reed fuse 10A
292507
$0,42 Unit Price incl. VAT
11
Elastic spring
231590
$0,25 Unit Price incl. VAT
12
Maintenance
584002
$1,77 Unit Price incl. VAT
13
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
14
ELECTRIC CONTROLS MANAGEMENT DEVICE
640805
$50,16 Unit Price incl. VAT
15
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
16
Hose clamp
217280
Not Available
17
Hose clamp
294013
$0,60 Unit Price incl. VAT
18
Screw M6x16
272836
$3,70 Unit Price incl. VAT
19
Spring plate M6
254485
$0,34 Unit Price incl. VAT
20
Non return spring
CM006902
$0,92 Unit Price incl. VAT
21
Knurled bushing
830056
$0,34 Unit Price incl. VAT
22
Ground cable
581424
Not Available

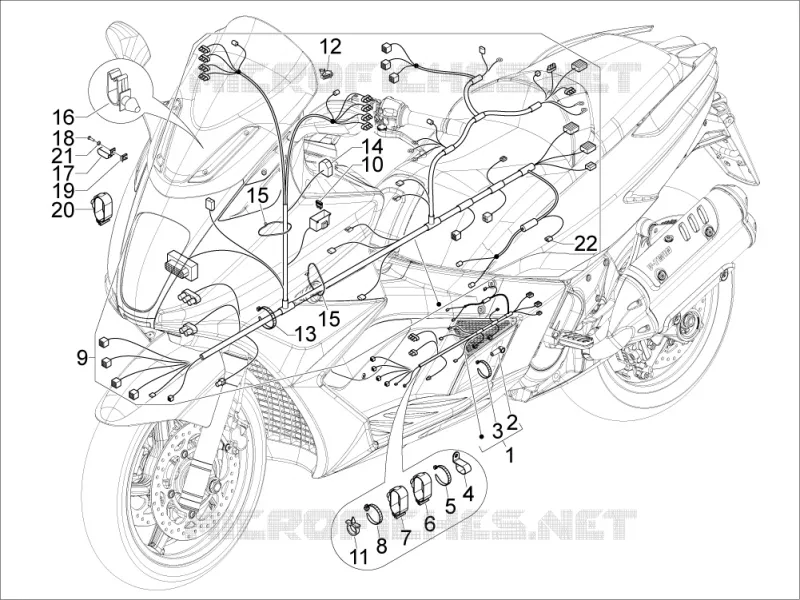

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
