1
Engine displacement
800
2
Model
GP
3
Year
2007
4
Trim
GP
5
Parts Catalog
Front glove-box - Knee-guard panel
6
Parts Diagram
Parts Catalog
Air filter
by
Front headlamps - Turn signal lamps
Front glove-box - Knee-guard panel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
1
Counter shield
6565160090
Not Available
1
Counter shield
653142000C
Not Available
1
Counter shield
656516
$62,19 Unit Price incl. VAT
2
Metric screw TBC
259348
$2,99 Unit Price incl. VAT
2
screw
CM179202
$0,25 Unit Price incl. VAT
3
Spring plate M6
254485
$0,34 Unit Price incl. VAT
4
Leg shield back plate central element
65314400ET
Not Available
4
Leg shield back plate central element
653144
$10,90 Unit Price incl. VAT
4
Leg shield back plate central element
65314400BR
Not Available
5
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
6
Battery box
652917
$13,96 Unit Price incl. VAT
7
Sub-frame attachment left bracket
652908
$7,17 Unit Price incl. VAT
8
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
9
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
10
Screw M6x16
272836
$3,70 Unit Price incl. VAT
11
Spring plate M6
254485
$0,34 Unit Price incl. VAT
12
Battery inspection flap
656194000C
$11,55 Unit Price incl. VAT
12
Battery inspection flap
653145000C
Not Available
13
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
14
Spring plate
CM017410
$0,34 Unit Price incl. VAT
15
Coolant insp. door
653146000C
Not Available
15
Coolant insp. door
656196000C
Not Available
15
Coolant insp. door
654968000C
$24,31 Unit Price incl. VAT
16
Spring plate
230359
$2,95 Unit Price incl. VAT
17
Stop plate
654813
$4,27 Unit Price incl. VAT
18
Parking brake lever gasket
654808
Not Available
19
Leg shield back plate small cover
656136
$13,63 Unit Price incl. VAT

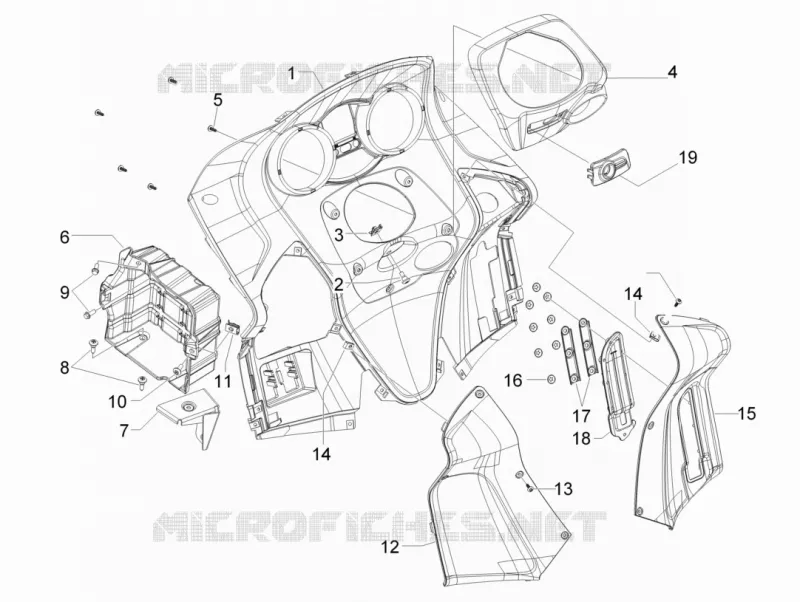

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
