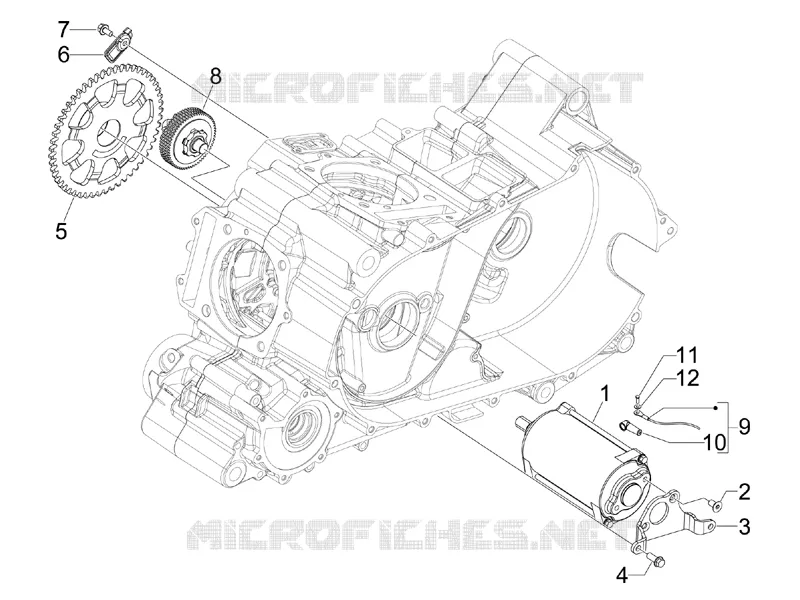

Stater - Electric starter
1
2
3
4
5
6
7
8
9
10
11
12
1
Starter motor
82697R
$211,95 Unit Price incl. VAT
2
Screw
840542
$3,65 Unit Price incl. VAT
2
Screw
831320
$0,09 Unit Price incl. VAT
3
Support clamp
841113
$6,25 Unit Price incl. VAT
4
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
5
Starter motor gear
842879
$63,98 Unit Price incl. VAT
6
Plate
833011
$1,93 Unit Price incl. VAT
7
Screw w/ flange
484123
$0,16 Unit Price incl. VAT
8
Torque limiter
832117
Not Available
8
Torque limiter
876835
$117,04 Unit Price incl. VAT
8
Torque limiter
8321174
Not Available
9
Starter cable
640459
$13,44 Unit Price incl. VAT
10
Cap
581061
$1,37 Unit Price incl. VAT
11
screw
581596
$0,07 Unit Price incl. VAT
12
Spring washer 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
