1
Engine displacement
250
2
Model
X-EVO
3
Year
2007
4
Trim
X Evo Euro 3
5
Parts Catalog

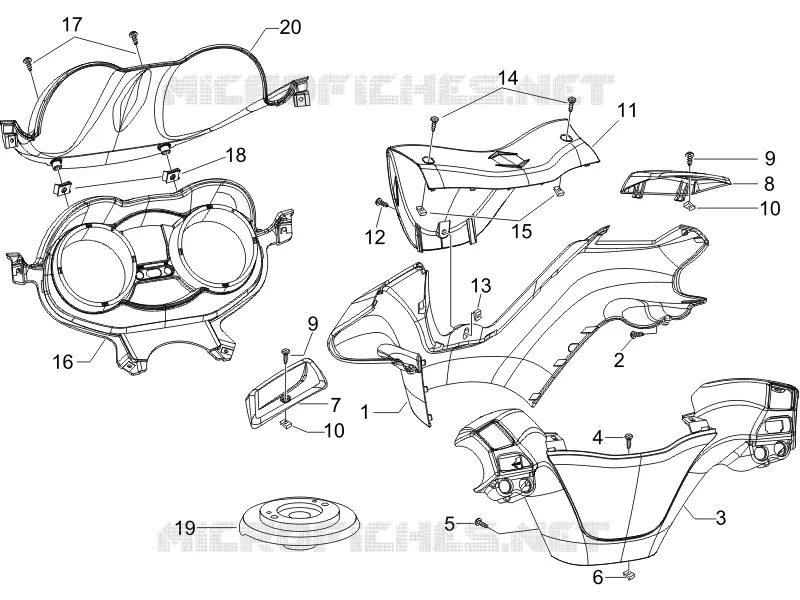

Handlebars coverages
6
Parts Diagram
Parts Catalog
Head unit - Valve
by
Front wheel
Handlebars coverages
1
2
3
4
5
6
7
8
9
9
10
10
11
12
13
14
15
16
17
18
19
20
1
Front handlebars cover
581494000C
$13,96 Unit Price incl. VAT
1
Front handlebars cover
581494000P
$18,75 Unit Price incl. VAT
2
Screw d4x20
227983
$3,65 Unit Price incl. VAT
3
Rear handlebars cover
655889000C
$8,92 Unit Price incl. VAT
3
Rear handlebars cover
598219000C
Not Available
3
Rear handlebars cover
598219000P
Not Available
4
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
5
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
6
Spring plate
CM017409
$0,08 Unit Price incl. VAT
7
LH pump cover
581497000C
$1,81 Unit Price incl. VAT
7
LH pump cover
581497000P
$5,38 Unit Price incl. VAT
8
RH pump cover
581496000C
$1,81 Unit Price incl. VAT
8
Instrument frame
623250
$34,73 Unit Price incl. VAT
8
RH pump cover
581496000P
$5,38 Unit Price incl. VAT
9
screw
621914
$3,65 Unit Price incl. VAT
10
Plate
CM017418
$3,65 Unit Price incl. VAT
11
Handlebar upper front cowl
65392400EM
Not Available
11
Handlebar upper front cowl
6539240090
Not Available
12
Self tapping screw 4,2x25*
014754
$2,95 Unit Price incl. VAT
13
Spring plate
CM017409
$0,08 Unit Price incl. VAT
14
Screw m5x25
581175
$0,17 Unit Price incl. VAT
15
Spring plate M5
248419
$0,67 Unit Price incl. VAT
16
Upper part instrument panel
653928000C
$14,73 Unit Price incl. VAT
17
Self tapping screw 4,2x25*
014754
$2,95 Unit Price incl. VAT
18
Plate
CM017408
$0,25 Unit Price incl. VAT
19
Handlebar lower protection
647035
$6,30 Unit Price incl. VAT
20
Lower part instrument panel
653923000C
$18,89 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
