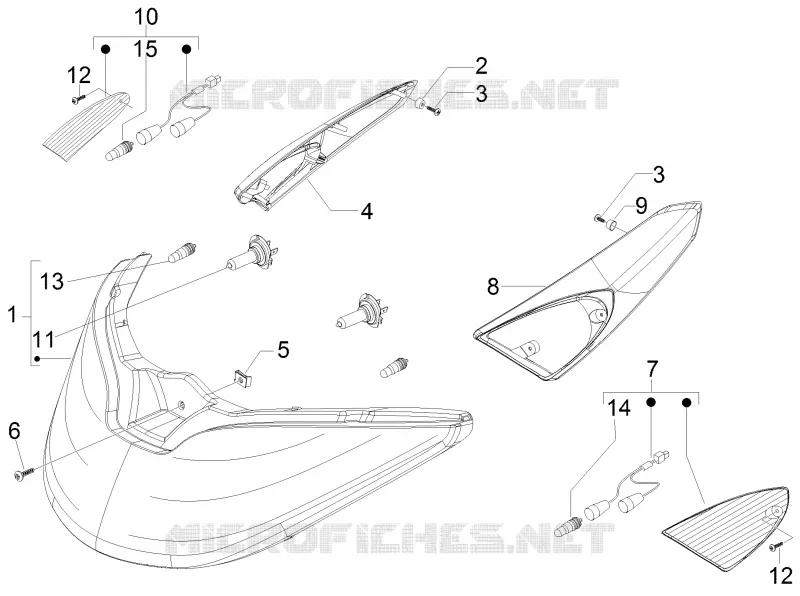

Front headlamps - Turn signal lamps
1
2
3
3
4
5
6
7
8
9
10
11
12
12
13
14
15
1
Reflector, assy.
640667
$140,31 Unit Price incl. VAT
2
Cap
192598
$0,42 Unit Price incl. VAT
3
Self tapping screw
297498
$0,08 Unit Price incl. VAT
4
Blinker support DX
653929
$23,22 Unit Price incl. VAT
5
Spring plate M6
254485
$0,34 Unit Price incl. VAT
6
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
7
LH front turn indicator
640666
$9,66 Unit Price incl. VAT
8
Blinker support SX
653930
$23,22 Unit Price incl. VAT
9
Cap
192598
$0,42 Unit Price incl. VAT
10
RH front turn indicator
640665
$9,66 Unit Price incl. VAT
11
Lamp H7 12V-55W
294353
$17,40 Unit Price incl. VAT
12
screw
640939
$3,65 Unit Price incl. VAT
13
Lamp 12V-5W
292022
Not Available
14
Lamp 12V-10W
181746
$3,28 Unit Price incl. VAT
15
Lamp 12V-10W
181746
$3,28 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
