Crankcase cover - Crankcase cooling for GILERA PIAGGIO VESPA X9 Evolution ABS from 2007

Crankcase cover - Crankcase cooling

1

COP. TRASMISSIONE COMPL.X RIC.

8769925

$276,75 Unit Price incl. VAT

2

DEFLETTORE ARIA

874136

$2,31 Unit Price incl. VAT

3

VITE METRICA CON CODOLO

575249

$0,66 Unit Price incl. VAT

4

ANELLO SEEGER

825667

$0,42 Unit Price incl. VAT

5

CUSCINETTO RADIALE

840277

$10,67 Unit Price incl. VAT

6

VITE ESAGONALE FLANGIATA M8X70 CL10,9

B016766

$0,94 Unit Price incl. VAT

7

Screw w/ flange M6x40

B016763

$3,65 Unit Price incl. VAT

8

VITE ESAGONALE FLANGIATA M8x100

B016767

$1,20 Unit Price incl. VAT

9

Cover soundproofing material

873492

Not Available

10

VITE METRICA CON CODOLO

575249

$0,66 Unit Price incl. VAT

11

FILTRO ARIA RAFFREDDAMENTO

833318

$13,95 Unit Price incl. VAT

12

VITE AUTOFIL. TBCIC 3,8x16

270793

$0,08 Unit Price incl. VAT

13

COPERCHIO RAFFREDDAMENTO

841490

$24,14 Unit Price incl. VAT

14

VITE AUTOFIL. TBCIC 3,8x16

270793

$0,08 Unit Price incl. VAT

15

MOLLETTA RITEGNO TUBI

CM013201

$0,40 Unit Price incl. VAT

16

Cooling Cover

620876

$23,22 Unit Price incl. VAT

17

VITE METRICA INTAGLIO A CROCE

259348

$2,99 Unit Price incl. VAT

18

RONDELLA PIANA 12x4,5x1

016670

$0,09 Unit Price incl. VAT

19

RIVETTO

252099

$3,65 Unit Price incl. VAT

20

ELEM.INSONORIZZANTE

833320

$12,45 Unit Price incl. VAT

21

ELEM.INSONORIZZANTE

833321

$12,45 Unit Price incl. VAT

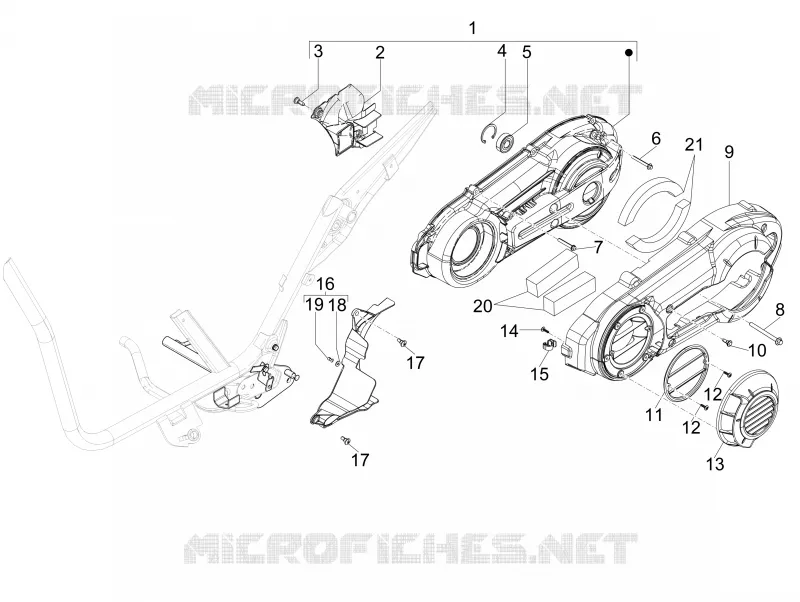

Find the detailed Crankcase cover - Crankcase cooling GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
