1
Engine displacement
500
2
Model
X9
3
Year
2007
4
Trim
X9 Evolution ABS
5
Parts Catalog
Handlebars - Master cil.
6
Parts Diagram
Parts Catalog
Cooling system
by
Front wheel
Handlebars - Master cil.
1
2
3
4
5
6
7
11
12
17
17
18
18
19
20
21
22
25
1
Handlebar
581880
Not Available
2
Hose
598351
$87,60 Unit Price incl. VAT
3
MANOPOLA SINISTRA
271452
$13,37 Unit Price incl. VAT
4
MANOPOLA DESTRA
271453
$13,37 Unit Price incl. VAT
5
Throttle opening transmission
582767
$33,75 Unit Price incl. VAT
6
Brakes pump
CM074401
Not Available
7
Brake lever
600829
Not Available
11
Brakes pump
CM074402
Not Available
12
Brake lever
600829
Not Available
12
stop Button
584953
Not Available
16
U-bolt and screws
600828
Not Available
17
Anti vib.weight trailing
582034
$14,89 Unit Price incl. VAT
18
screw M6x55
271434
Not Available
19
screw
223605
Not Available
20
RONDELLA ELASTICA PIANA DENT.INTERNA
012543
$0,08 Unit Price incl. VAT
21
RONDELLA PIANA
178790
$0,51 Unit Price incl. VAT
22
ECROU
015330
$0,25 Unit Price incl. VAT
25
TRASMISS.CHIUSURA GAS
582768
$33,75 Unit Price incl. VAT

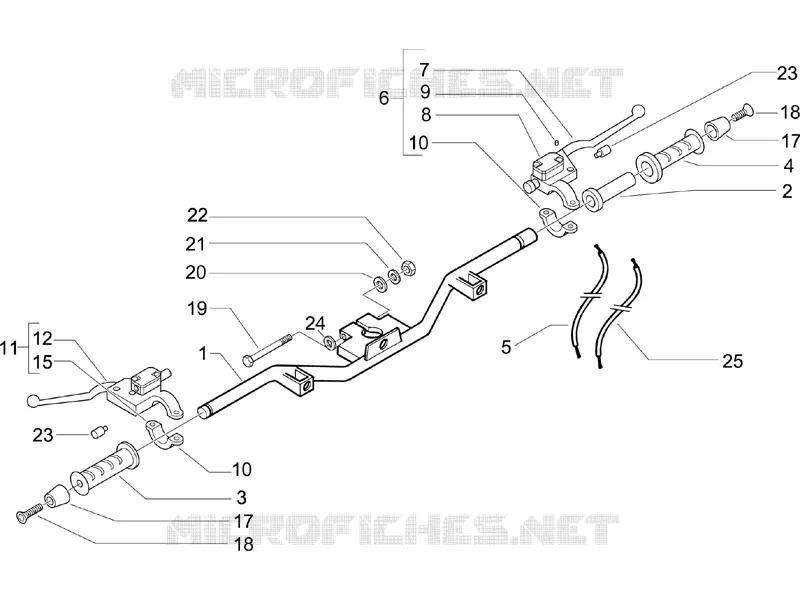

Find the detailed Handlebars - Master cil. GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
