by

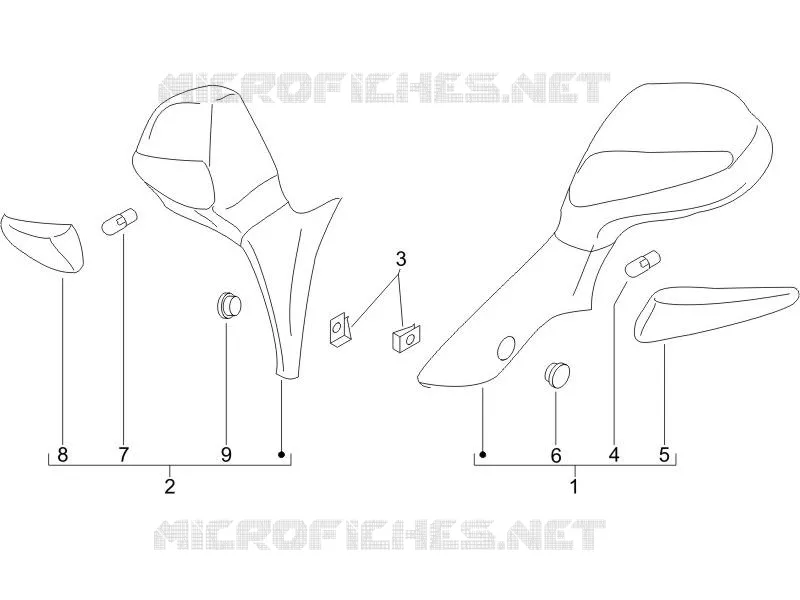

Driving mirror/s
1
2
3
4
5
6
7
8
9
1
Mirror
CM07370100D9
Not Available
1
Mirror
CM07370100EB
Not Available
1
Mirror
CM07370100F2
Not Available
1
LEFT REAR-VIEW MIRROR
CM025901
Not Available
1
Mirror
CM0737010090
Not Available
1
REARVIEW MIRR. L.H.
CM07370100ND
$270,00 Unit Price incl. VAT
1
LH DRIVING MIRROR - X9
CM02590100DE
Not Available
2
Mirror
CM07370200F2
Not Available
2
Mirror
CM07370200EB
Not Available
2
RIGHT REAR-VIEW MIRROR
CM025902
Not Available
2
Mirror
CM07370200D9
Not Available
2
RH MIRROR X9 EVO
CM02590200DE
Not Available
2
Mirror
CM0737020090
Not Available
2
REARVIEW MIRR. R.H.
CM07370200ND
Not Available
3
Spring plate M6
254485
$0,34 Unit Price incl. VAT
4
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
5
Left hand lens for turnsignal
638713
$18,14 Unit Price incl. VAT
6
Driving mirror plugs unit
600329
$4,82 Unit Price incl. VAT
7
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
8
Right hand lens for turnsignal
638714
Not Available
9
Driving mirror plugs unit
600328
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
