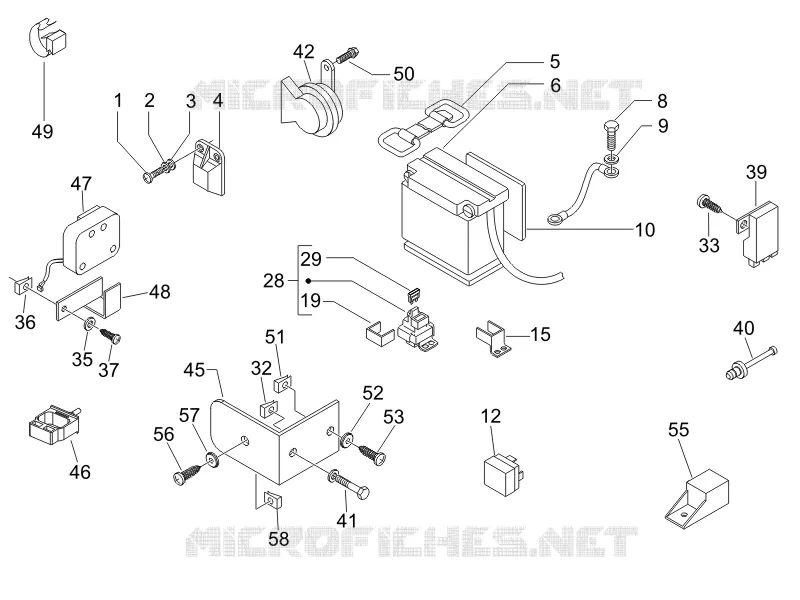

Remote control switches - Battery - Horn
1
2
3
4
5
6
8
9
10
12
15
19
28
29
32
33
35
36
37
39
40
41
42
45
46
47
48
49
50
51
52
53
55
56
57
58
1
Screw M6x20
015759
$2,95 Unit Price incl. VAT
2
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
3
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
4
Decoder
829121
Not Available
5
Belt
583921
$9,50 Unit Price incl. VAT
6
Battery Yuasa YTX14-BS 12V-12Ah (150x87x145)
638733
$387,53 Unit Price incl. VAT
8
screw
581596
$0,07 Unit Price incl. VAT
9
Spring washer 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
10
Pad
577313
$5,53 Unit Price incl. VAT
12
Diode gr.
583529
Not Available
15
Electromagnetic switch support bracket
581859
$2,10 Unit Price incl. VAT
19
Flexible support
582906
Not Available
28
Starter relay
582690
$27,87 Unit Price incl. VAT
29
Fuse 30A
581440
Not Available
32
Spring plate M5
248419
$0,67 Unit Price incl. VAT
33
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
35
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
36
Spring plate M6
254485
$0,34 Unit Price incl. VAT
37
Screw M6x16
272836
$3,70 Unit Price incl. VAT
39
Rem. control switch 12V-30A
581139
Not Available
40
Ambient temperature sensor
581142
Not Available
41
TBCIC Screw M5x12
015935
$4,82 Unit Price incl. VAT
42
Warning horn 12V
581441
$46,92 Unit Price incl. VAT
45
Bracket
583531
Not Available
46
Flexible support
291017
$4,88 Unit Price incl. VAT
47
Fall sensor
584509
$26,13 Unit Price incl. VAT
48
BRACKET
584519
Not Available
49
Connector spring
584520
$5,38 Unit Price incl. VAT
50
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
51
Spring plate
CM017405
$3,65 Unit Price incl. VAT
52
Flat washer 4,2x12x1
013763
$0,08 Unit Price incl. VAT
53
screw
015728
$2,95 Unit Price incl. VAT
55
Switch electromagnetic switch 12V-40/15A
292332
$21,37 Unit Price incl. VAT
56
TBCIC Screw M5x12
015935
$4,82 Unit Price incl. VAT
57
Spring washer 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
58
Spring plate M5
248419
$0,67 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
