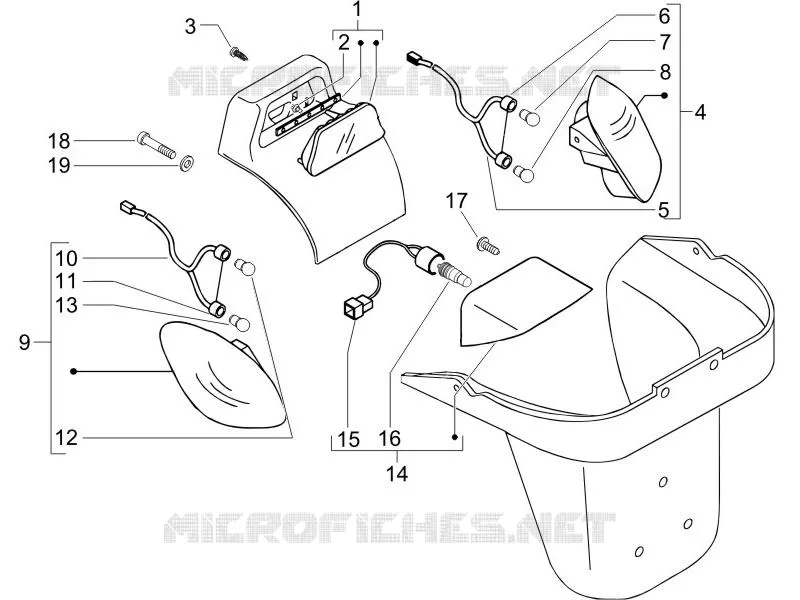

Rear headlamps - Turn signal lamps
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Headlight
638693
Not Available
2
Glass lamp 12v-2,3w
581056
Not Available
3
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
4
RH TAIL LAMP X9 EVOLUTION
638727
$113,40 Unit Price incl. VAT
5
Cable harness r.h.
581647
$38,43 Unit Price incl. VAT
6
Lampholder
581648
$6,38 Unit Price incl. VAT
7
Bulb 12V-5W
181747
Not Available
8
Lamp 12V-10W
181746
$3,28 Unit Price incl. VAT
9
LH TAIL LAMP X9 EVOLUTION
638728
$113,40 Unit Price incl. VAT
10
Cable harness l.h.
581653
$30,62 Unit Price incl. VAT
11
Lampholder
581648
$6,38 Unit Price incl. VAT
12
Bulb 12V-5W
181747
Not Available
13
Lamp 12V-10W
181746
$3,28 Unit Price incl. VAT
14
REAR LAMP
63873200E8
$19,71 Unit Price incl. VAT
15
Lampholder
581443
$16,59 Unit Price incl. VAT
16
Lamp 12V-5W
292022
Not Available
17
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
18
screw M6x14
008375
$1,55 Unit Price incl. VAT
19
Washer 6.4x13x1.5
013777
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
