1
Engine displacement
250
2
Model
X9
3
Year
2006
4
Trim
X9 Evolution
5
Parts Catalog
Side cover - Spoiler
6

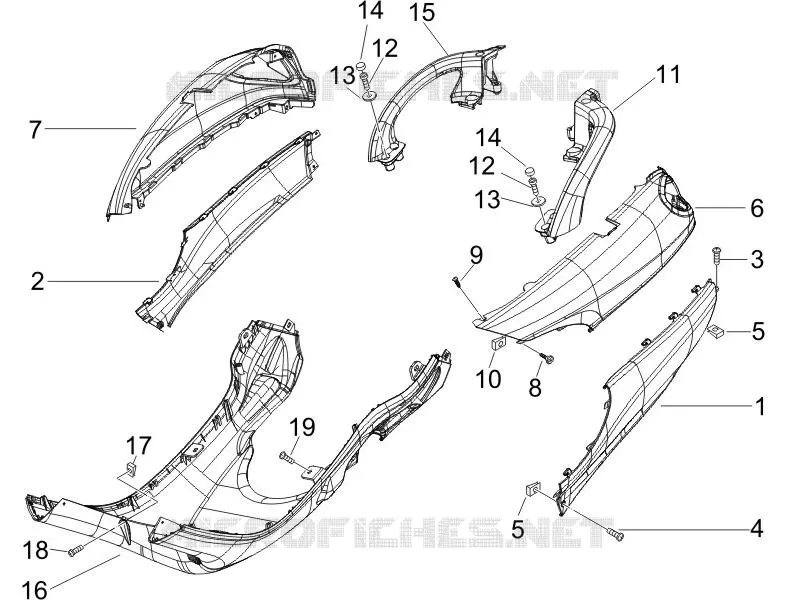

Parts Diagram
Parts Catalog
Central cover - Footrests
by
Wheel huosing - Mudguard
Side cover - Spoiler
1
2
3
4
5
5
6
7
8
9
10
11
12
12
13
13
14
14
15
16
17
18
19
1
Lower side panel
57799700E8
$79,92 Unit Price incl. VAT
1
Lower side panel
577997000P
$79,92 Unit Price incl. VAT
2
Lower side panel
577998000P
$79,92 Unit Price incl. VAT
2
Lower side panel
57799800E8
$79,92 Unit Price incl. VAT
3
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
4
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
5
Spring plate
CM017410
$0,34 Unit Price incl. VAT
6
LH UPPER SIDE COVER X9 UNPAINTED
620425
$308,17 Unit Price incl. VAT
6
Upper side panel
6204250090
$385,33 Unit Price incl. VAT
6
Upper side panel
62042500EB
$385,33 Unit Price incl. VAT
6
LH UPPER SIDE COVER X9 UNPAINTED
6204250087
Not Available
6
Upper side panel
62042500F2
Not Available
6
left hand upper side panel
62042500DE
Not Available
6
LH UPPER SIDE COVER X9 UNPAINTED
62042500ND
$385,33 Unit Price incl. VAT
6
Upper side panel
62042500D9
Not Available
7
UPPER SIDE PANEL RH X9 UNPAINTED
620426
Not Available
7
UPPER SIDE PANEL RH X9 UNPAINTED
6204260087
Not Available
7
Upper side panel
6204260090
$385,33 Unit Price incl. VAT
7
left hand upper side panel
62042600DE
$385,33 Unit Price incl. VAT
7
UPPER SIDE PANEL RH X9 UNPAINTED
62042600ND
$385,33 Unit Price incl. VAT
7
Upper side panel
62042600D9
Not Available
7
Upper side panel
62042600EB
$385,33 Unit Price incl. VAT
7
LEFT REAR UPPER SIDE
62042600EI
Not Available
7
Upper side panel
62042600F2
Not Available
8
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
9
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
10
Spring plate
CM017410
$0,34 Unit Price incl. VAT
11
left handle
575572000C
$76,39 Unit Price incl. VAT
11
RR LH GRIP HANDLE X9 500
575572
Not Available
12
Hexagonal-head screw m6x40
574260
$2,25 Unit Price incl. VAT
13
Washer 6.4x13x1.5
013777
$0,08 Unit Price incl. VAT
14
Cover
575860
$5,38 Unit Price incl. VAT
15
RH handle
575573000C
$76,39 Unit Price incl. VAT
15
RR RH GRAP HANDLE X9 500
575573
Not Available
16
Spoiler
57799600E8
$70,25 Unit Price incl. VAT
16
Spoiler
577996000P
Not Available
17
Spring plate
CM017409
$0,08 Unit Price incl. VAT
18
Self tapping screw M4,2x25
259372
$2,99 Unit Price incl. VAT
19
Screw M6x16
272836
$3,70 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
