1
Engine displacement
125
2
Model
X9
3
Year
2006
4
Trim
X9 Evolution Potenziato
5
Parts Catalog

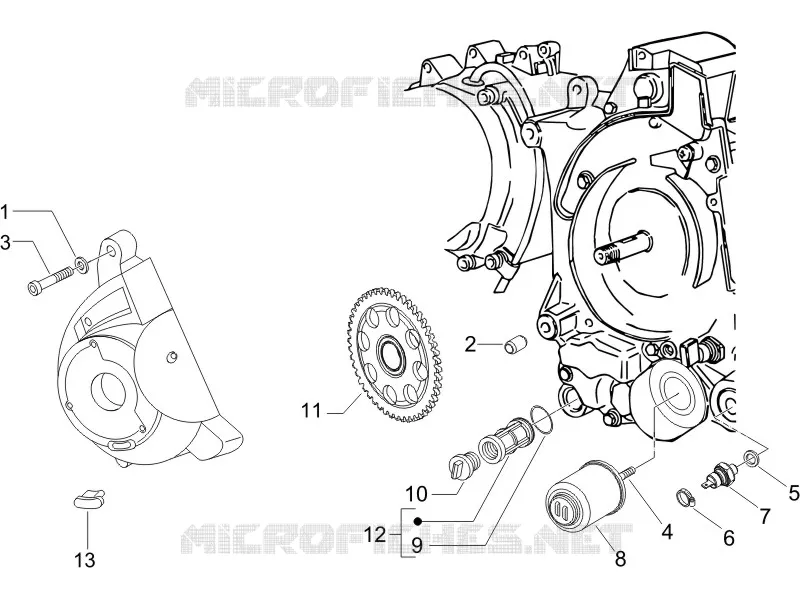

Flywheel magneto cover - Oil filter
6
Parts Diagram
Parts Catalog
Flywheel magneto
by
Reduction unit
Flywheel magneto cover - Oil filter
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Washer 5.3x10x10
006965
$0,08 Unit Price incl. VAT
2
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
3
screw
828493
$2,95 Unit Price incl. VAT
4
Special screw
483776
$1,49 Unit Price incl. VAT
5
Washer 10.5X16X2.5
486075
$1,58 Unit Price incl. VAT
6
Hose clamp
825481
$3,38 Unit Price incl. VAT
7
Oil pressure sensor
82580R
$16,59 Unit Price incl. VAT
8
Oil filter
82635R
$12,36 Unit Price incl. VAT
9
O-ring 20,35x1,78
288474
$0,08 Unit Price incl. VAT
10
Oil filter plug
82823R
Not Available
10
Oil filter plug
826165
$5,88 Unit Price incl. VAT
11
Oil pump gear
287913
$6,47 Unit Price incl. VAT
12
Intake oil filter
483841
$3,55 Unit Price incl. VAT
13
Cover
825529
$5,38 Unit Price incl. VAT
14
O-ring 31,47x1,78
285536
$0,92 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
