Engine displacement
125
2
Model
X9
3
Year
2006
4
Trim
X9 Evolution Potenziato
5
Parts Catalog
Swinging arm
6
Parts Diagram
Parts Catalog
Handlebars - Master cil.
by
Fork/steering tube - Steering bearing unit
Swinging arm
1
3
4
4
5
6
7
8
8
9
10
11
12
12
13
14
15
16
17
17
18
19
1
Swinging arm
597503
Not Available
3
Swinging arm
597502
$108,35 Unit Price incl. VAT
4
Roller cage
597374
Not Available
5
Bush
597079
$10,29 Unit Price incl. VAT
6
Nut m22x2 h=8
564611
$3,65 Unit Price incl. VAT
7
Hex socket screw
597080
$6,60 Unit Price incl. VAT
8
Self locking nut M10
232108
Not Available
8
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
9
Hex screw M10x202
271807
$4,41 Unit Price incl. VAT
10
Spacer L=183 mm
CM067801
$6,51 Unit Price incl. VAT
11
PLATE FOR CENTRAL STAND
647053
Not Available
12
Bush
273460
$0,75 Unit Price incl. VAT
13
Silent-block
272750
$12,52 Unit Price incl. VAT
14
Circlip
006416
$0,08 Unit Price incl. VAT
15
Bolt
031153
$3,65 Unit Price incl. VAT
16
Washer
597230
$1,15 Unit Price incl. VAT
17
Nut
564878
$2,99 Unit Price incl. VAT
18
Spring
597490
$4,82 Unit Price incl. VAT
19
screw
597081
$5,20 Unit Price incl. VAT

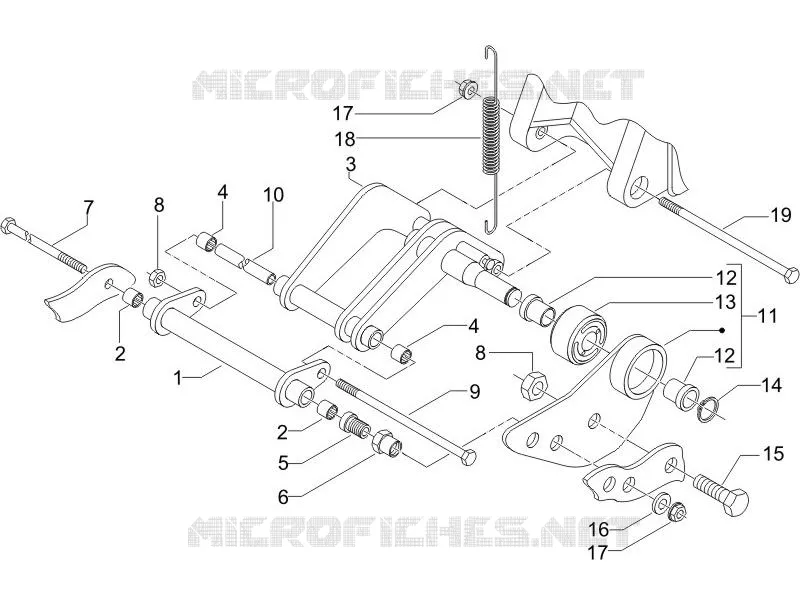

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
