Engine displacement
125
2
Model
X9
3
Year
2007
4
Trim
X9 Evolution Euro 3
5
Parts Catalog
Front shield
6
Parts Diagram
Parts Catalog
Stand/s
by
Windshield - Glass
Front shield
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Frame
62043100EB
Not Available
1
RIM
62043100ND
$242,84 Unit Price incl. VAT
1
RIM
62043100ES
Not Available
1
RIM
620431
Not Available
1
Frame
62043100F2
$242,84 Unit Price incl. VAT
1
Nose panel
62043100DE
$242,84 Unit Price incl. VAT
2
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
3
Spring plate
CM017410
$0,34 Unit Price incl. VAT
4
shield
57556100F2
$553,92 Unit Price incl. VAT
4
shield
57556100EB
Not Available
4
FF SHIELD X9 UNPAINTED
5755615
$170,45 Unit Price incl. VAT
4
SHIELD
57556100ND
$553,92 Unit Price incl. VAT
4
Front shield
57556100DE
$553,92 Unit Price incl. VAT
4
SHIELD
57556100ES
Not Available
5
Screw m6x30
271891
$3,65 Unit Price incl. VAT
6
Screw M6x16
272836
$3,70 Unit Price incl. VAT
7
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
8
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
9
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
10
Spring plate
CM017410
$0,34 Unit Price incl. VAT
11
Spring plate M6
254485
$0,34 Unit Price incl. VAT
12
Air intake
620433
$6,30 Unit Price incl. VAT
13
Grid
620434
$7,23 Unit Price incl. VAT
14
Air intake
620661
$6,30 Unit Price incl. VAT
15
Grid
620662
$7,23 Unit Price incl. VAT
16
Self tapping screw
297498
$0,08 Unit Price incl. VAT

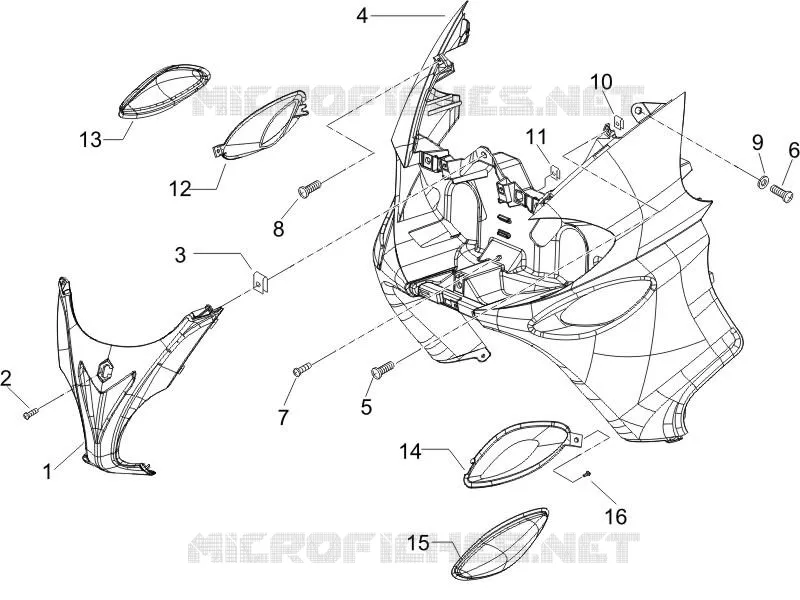

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
