Engine displacement
125
2
Model
X9
3
Year
2007
4
Trim
X9 Evolution Euro 3
5
Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Supply system
by
Handlebars coverages
Cooling system
1
2
3
3
3
4
5
5
6
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
33
34
35
36
37
1
pipe
620690
Not Available
2
Cooler-tank return pipe
575540
$7,23 Unit Price incl. VAT
3
Hose clamp
CM001903
$0,84 Unit Price incl. VAT
4
Hose clamp
CM001904
$0,75 Unit Price incl. VAT
5
Hose clamp
CM001907
$0,84 Unit Price incl. VAT
6
Hose clamp
CM001908
$3,65 Unit Price incl. VAT
8
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
9
pipe
620593
Not Available
10
Coolant tank
623848
Not Available
11
Expansion tank plug
623673
$15,97 Unit Price incl. VAT
12
Fuel tank gasket
620737
$4,82 Unit Price incl. VAT
13
Lower rubber
258904
$0,25 Unit Price incl. VAT
14
Temperature gauge
584715
$24,35 Unit Price incl. VAT
15
Copper gasket
168077
$3,65 Unit Price incl. VAT
16
Upper rubber
351782
$0,34 Unit Price incl. VAT
17
Lower rubber
258904
$0,25 Unit Price incl. VAT
18
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
19
Washer d6,2x20x1
013092
$0,17 Unit Price incl. VAT
20
Spacer
273288
$1,01 Unit Price incl. VAT
21
Water cooler
57302R
Not Available
22
CYLINDER HEAD-RADIATOR JOINT PIPE
653210
$20,75 Unit Price incl. VAT
23
Fan engine
580922
Not Available
24
Screw M6x16
272836
$3,70 Unit Price incl. VAT
25
Self tapping screw L=20 mm
267958
$0,25 Unit Price incl. VAT
26
Flat washer 5,3x14x1
060201
Not Available
27
Spring plate M6
254485
$0,34 Unit Price incl. VAT
28
screw M5x21
015856
$0,16 Unit Price incl. VAT
29
Nut
012112
$0,29 Unit Price incl. VAT
30
Radiator grill closure
624511
Not Available
31
Screw m6x30
015761
$2,95 Unit Price incl. VAT
32
Self locking nut M6
241936
$0,08 Unit Price incl. VAT
33
Fuel tank bracket
575864
$1,17 Unit Price incl. VAT
34
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
35
Pipes/cables retainer spring
CM006903
$1,43 Unit Price incl. VAT
36
Maintenance
299382
Not Available
37
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT

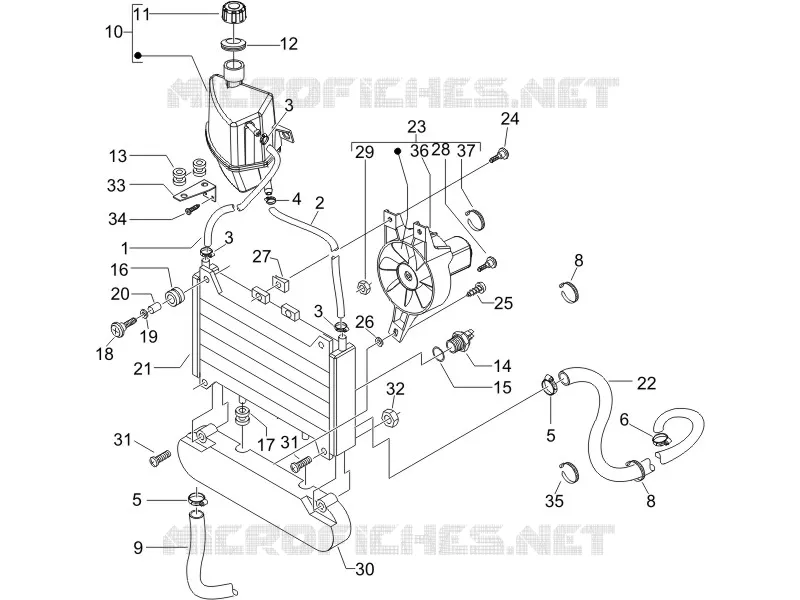

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
