1
Engine displacement
400
2
Model
X8
3
Year
2006
4
Trim
X8 ie Euro 3
5
Parts Catalog
Front headlamps - Turn signal lamps
6
Parts Diagram
Parts Catalog
Stater - Electric starter
by
Rear wheel

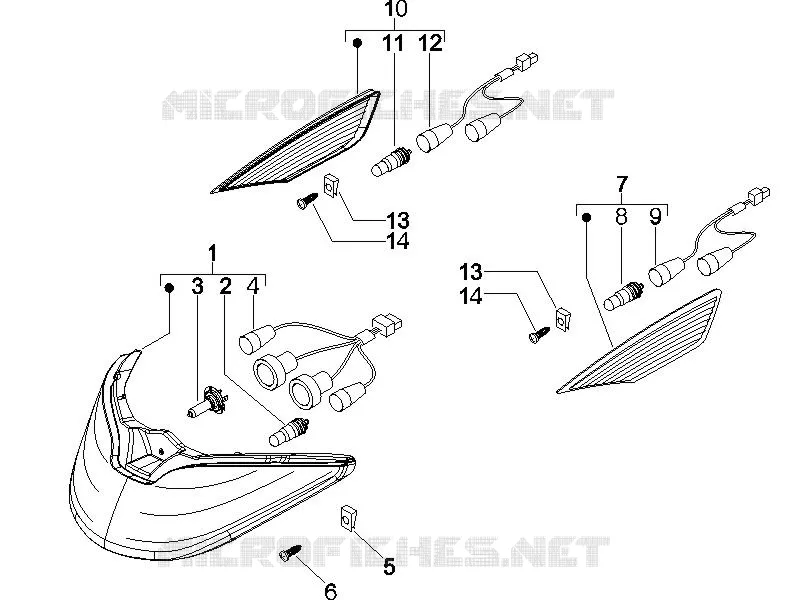

Front headlamps - Turn signal lamps
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
14
1
Headlamp, assy
584593
Not Available
2
Lamp 12V-5W
292022
Not Available
3
Lamp H7 12V-55W
294353
$17,40 Unit Price incl. VAT
4
Cable harness
584791
$34,32 Unit Price incl. VAT
5
Spring plate M6
254485
$0,34 Unit Price incl. VAT
6
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
7
Fr. Turn sig. lamp
584740
Not Available
8
Lamp
581904
$6,35 Unit Price incl. VAT
9
Cable harness
584840
$13,17 Unit Price incl. VAT
10
Fr. Turn sig. lamp
584741
Not Available
11
Lamp
581904
$6,35 Unit Price incl. VAT
12
Cable harness
584840
$13,17 Unit Price incl. VAT
13
Spring plate
CM017410
$0,34 Unit Price incl. VAT
14
Self-tap screw
576189
$0,05 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
