1
Engine displacement
400
2
Model
X8
3
Year
2006
4
Trim
X8 ie Euro 3
5
Parts Catalog

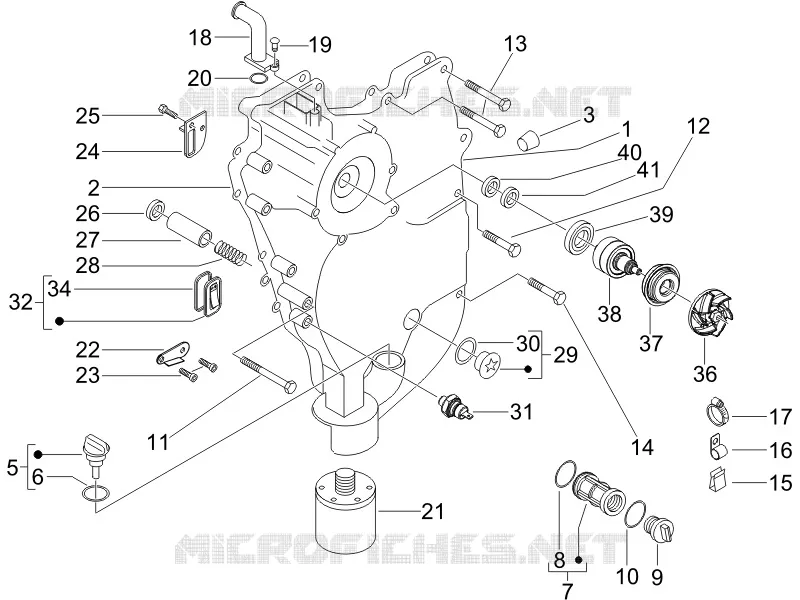

Flywheel magneto cover - Oil filter
6
Parts Diagram
Parts Catalog
Handlebars - Master cil.
by
Flywheel magneto
Flywheel magneto cover - Oil filter
1
2
3
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
34
36
37
38
39
40
41
1
flywheel case cover
871048
Not Available
2
Flywheel housing cover gasket
847649
$6,38 Unit Price incl. VAT
3
Plug M12x1,5
411311
$0,67 Unit Price incl. VAT
5
Oil plug
825665
Not Available
6
O-ring
479986
Not Available
7
Oil filter
826033
$13,61 Unit Price incl. VAT
8
O-ring 20,35x1,78
288474
$0,08 Unit Price incl. VAT
9
Oil filter plug
82823R
Not Available
9
Oil filter plug
826165
$5,88 Unit Price incl. VAT
10
O-ring 31,47x1,78
285536
$0,92 Unit Price incl. VAT
11
Screw m6x70
434429
$0,60 Unit Price incl. VAT
12
Screw w/ flange M6x25
414837
Not Available
13
screw M6x35
414838
$0,67 Unit Price incl. VAT
14
screw
414835
$0,15 Unit Price incl. VAT
15
Spring
584464
Not Available
15
Spring
640925
Not Available
16
Piping retainer clamp
849825
$4,82 Unit Price incl. VAT
16
CLAMP
845230
Not Available
17
Hose clamp
845978
$5,63 Unit Price incl. VAT
18
Breather pipe
829047
$2,57 Unit Price incl. VAT
19
TBCIC Screw M5x12
015935
$4,82 Unit Price incl. VAT
20
O-ring
237553
$1,36 Unit Price incl. VAT
21
Oil filter
82883R
Not Available
21
Oil filter cpl.
82658R
$21,87 Unit Price incl. VAT
22
Plate
830886
$4,82 Unit Price incl. VAT
23
Screw M5x10
018575
$2,95 Unit Price incl. VAT
24
Valve tightening plate with U.P.
828930
$6,38 Unit Price incl. VAT
25
screw M5x10
433800
$0,19 Unit Price incl. VAT
26
Washer 10.5X16X2.5
486075
$1,58 Unit Price incl. VAT
27
Oil pressure valve
829661
$6,44 Unit Price incl. VAT
28
Spring
829486
$4,82 Unit Price incl. VAT
29
Timing plug assembly
829040
Not Available
30
O-ring
479986
Not Available
31
Oil pressure sensor
82580R
$16,59 Unit Price incl. VAT
32
Reed valve support
82778R
$12,01 Unit Price incl. VAT
34
Gasket
828031
Not Available
36
Water pump impeller cpl.
827929
Not Available
37
Gasket ring
841329
Not Available
37
Gasket ring
844439
Not Available
38
Water pump shaft assy.
828394
$41,73 Unit Price incl. VAT
39
Ceramic insert
841330
Not Available
40
Gasket ring 8x16x7
825577
$3,60 Unit Price incl. VAT
41
Washer
829557
$0,09 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
