Parts Catalog
Reduction unit
6

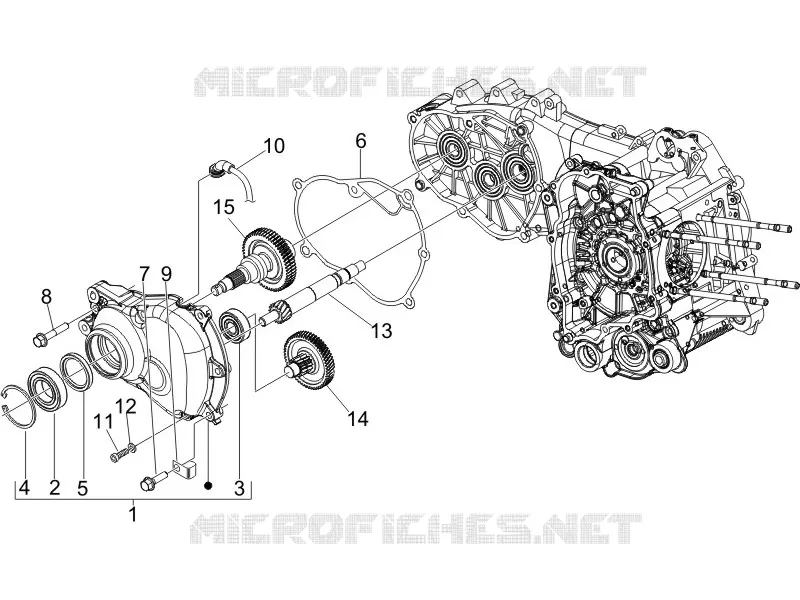

Parts Diagram
Parts Catalog
Flywheel magneto cover - Oil filter
by
Throttle body - Injector - Union pipe
Reduction unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Side cover
842143
Not Available
2
Radial bearing 30x55x13
82659R
Not Available
3
Radial ball bearing 15x42x13
485912
Not Available
4
Circlip
829206
$0,67 Unit Price incl. VAT
5
Oil seal 38x50x7
829201
Not Available
5
Oil seal 38x50x7
873351
$4,80 Unit Price incl. VAT
6
Gasket
847931
$6,48 Unit Price incl. VAT
7
Screw w/ flange M8x45
487211
$0,29 Unit Price incl. VAT
8
screw M8x40
825758
$0,33 Unit Price incl. VAT
9
Hose clamp
827277
$3,65 Unit Price incl. VAT
10
Breather
830862
$4,02 Unit Price incl. VAT
10
Breather pipe
844669
$4,89 Unit Price incl. VAT
11
Hex socket screw M8x12
269755
$0,34 Unit Price incl. VAT
12
Washer 8.2x12x1
485703
$0,16 Unit Price incl. VAT
13
Pulley shaft
830071
Not Available
14
Transmission shaft Z=21/50
8410015
Not Available
15
Rear wheel axle
8420975
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
