1
Engine displacement
250
2
Model
X8
3
Year
2005
4
Trim
X8 ie
5
Parts Catalog
Handlebars - Master cil.
6
Parts Diagram
Parts Catalog
Meter combination - Cruscotto
by
Swinging arm

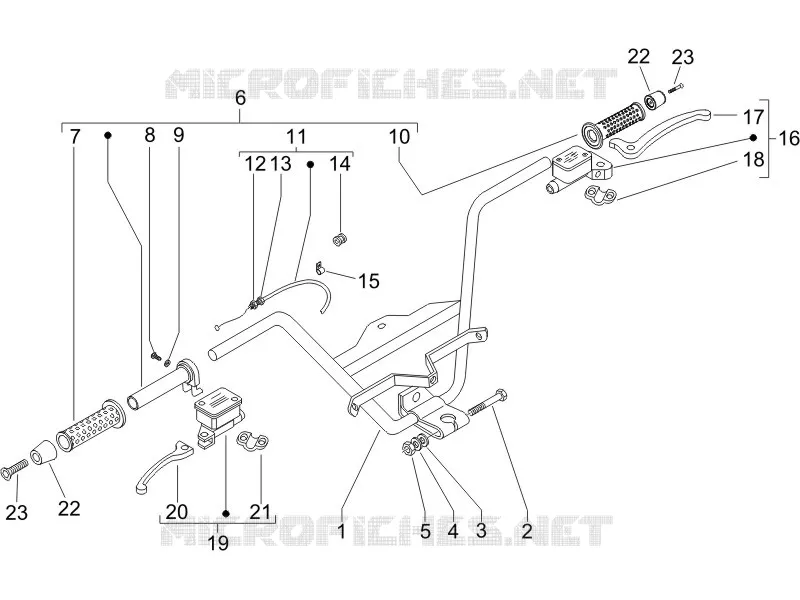

Handlebars - Master cil.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
23
1
Handlebar
5994065
Not Available
2
screw
223605
Not Available
3
Flat washer
178790
$0,51 Unit Price incl. VAT
4
Flat elastic washer with internal toothing 17x10,3x2
012543
$0,08 Unit Price incl. VAT
5
Nut M10
015330
$0,25 Unit Price incl. VAT
6
Throtle sleeve
CM060969
Not Available
7
Grip, r.h.
271453
$13,37 Unit Price incl. VAT
8
Screw with bushing
123394
$3,70 Unit Price incl. VAT
9
Ring 38,3x27x1,2
562923
$2,99 Unit Price incl. VAT
10
Grip, l.h.
271452
$13,37 Unit Price incl. VAT
11
THROTTLE TRANSMISSION
647016
Not Available
12
Nut M8
020208
$2,95 Unit Price incl. VAT
13
Nut M6
020206
$0,08 Unit Price incl. VAT
14
Fairlead
016516
$0,88 Unit Price incl. VAT
15
Elastic spring
231590
$0,25 Unit Price incl. VAT
16
Left brake hydraulic pump
CM076307
$202,50 Unit Price incl. VAT
17
Brake lever Heng Tong
600475
$11,82 Unit Price incl. VAT
18
Bracket
600476
$11,06 Unit Price incl. VAT
19
Right brake hydraulic pump
CM076305
Not Available
20
Brake lever Heng Tong
600475
$11,82 Unit Price incl. VAT
21
Bracket
600476
$11,06 Unit Price incl. VAT
22
End terminal
271433
$20,41 Unit Price incl. VAT
23
screw M6x55
271434
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
