1
Engine displacement
150
2
Model
X8
3
Year
2006
4
Trim
X8 Street Euro 2
5
Parts Catalog

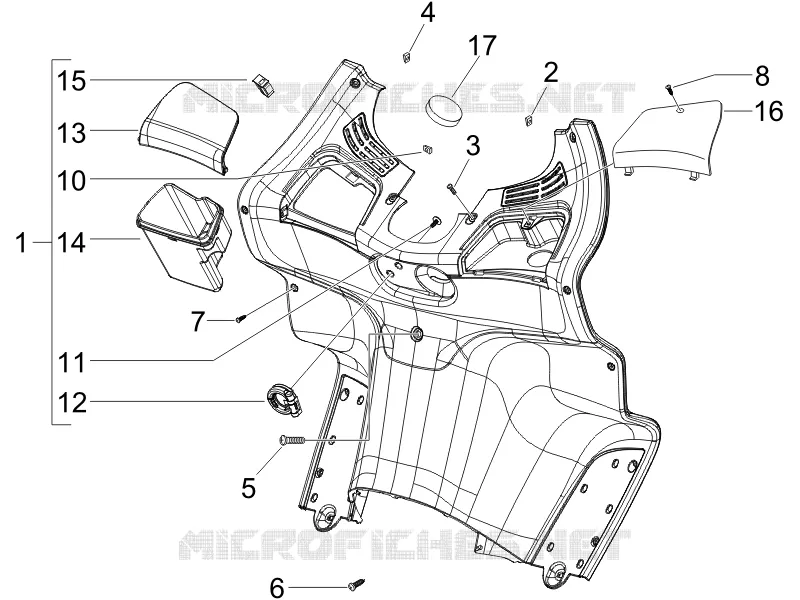

Front glove-box - Knee-guard panel
6
Parts Diagram
Parts Catalog
Carburetor's components
by
Locks
Front glove-box - Knee-guard panel
1
2
3
4
5
6
7
8
10
11
12
14
15
16
17
1
Counter shield
620911000P
$139,01 Unit Price incl. VAT
2
Spring plate
CM017410
$0,34 Unit Price incl. VAT
3
screw
008265
$2,25 Unit Price incl. VAT
4
Spring plate M6
254485
$0,34 Unit Price incl. VAT
5
Screw M6x16
272836
$3,70 Unit Price incl. VAT
6
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
7
Self-tap screw
576189
$0,05 Unit Price incl. VAT
8
Self-tap screw
576189
$0,05 Unit Price incl. VAT
10
Spring plate
CM017410
$0,34 Unit Price incl. VAT
11
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
12
Bag holder hook
575819
$12,88 Unit Price incl. VAT
14
Glovebox compartment
620996
Not Available
15
Covers
621112
$37,72 Unit Price incl. VAT
16
Radiator liquid inspection cover
620994000P
$5,69 Unit Price incl. VAT
17
Cover
483859
$0,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
