1
Engine displacement
150
2
Model
X8
3
Year
2006
4
Trim
X8 Street Euro 2
5
Parts Catalog
Frame/bodywork
6
Parts Diagram
Parts Catalog
Selectors - Switches - Buttons
by
Driving pulley

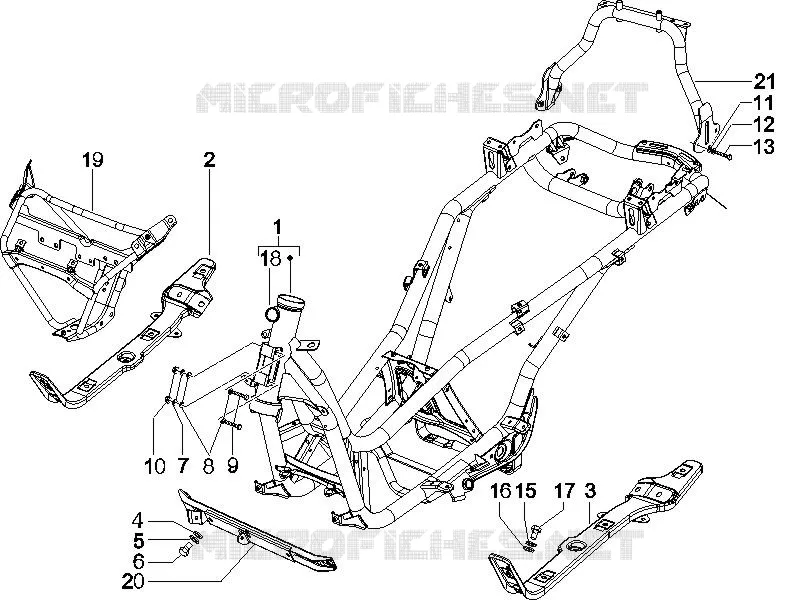

Frame/bodywork
1
2
3
4
5
6
7
8
9
10
11
12
13
15
16
17
18
19
20
21
1
FRAME
6238425
Not Available
2
RIGHT CROSS PIN WITH I.P.
6211615
$19,65 Unit Price incl. VAT
3
Cross member
CM0185015
$17,85 Unit Price incl. VAT
4
Flat washer 8,4x18x2
003038
$0,25 Unit Price incl. VAT
5
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
6
screw M8x35
030072
$3,65 Unit Price incl. VAT
7
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
8
Washer 6,2x18x2
013950
$0,34 Unit Price incl. VAT
9
screw M6x60
432142
$0,19 Unit Price incl. VAT
10
Nut
969224
$0,42 Unit Price incl. VAT
11
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
12
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
13
Hex screw M6x18
031089
$2,99 Unit Price incl. VAT
15
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
16
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
17
screw M6x16
031088
$0,17 Unit Price incl. VAT
18
Lock support
298604
$16,40 Unit Price incl. VAT
19
FRONT FRAME
6238445
Not Available
20
CROSS MEMBER
6210512
$18,77 Unit Price incl. VAT
20
Cross member
6210515
Not Available
21
Frame
6202605
$30,22 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
