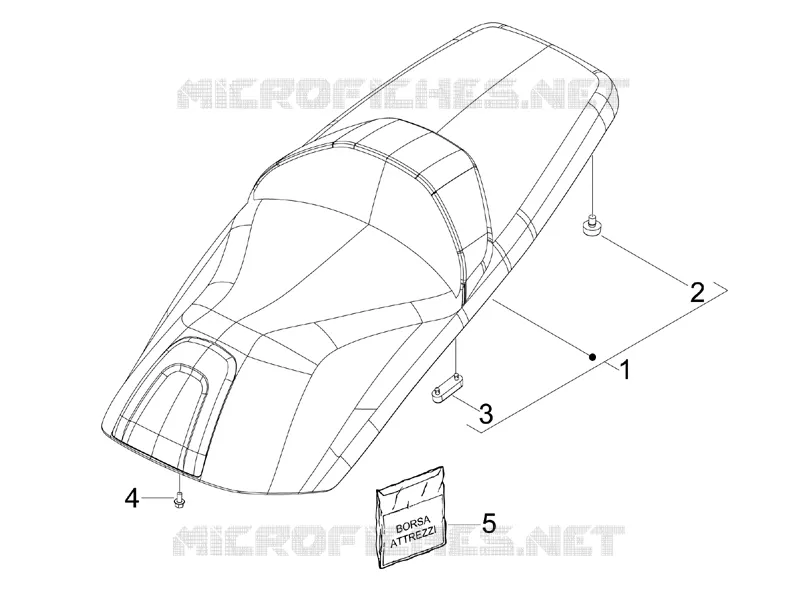

Saddle/seats
1
2
3
4
5
1
COMPLETE SADDLE
656760
Not Available
2
Stop buffer
296456
$2,77 Unit Price incl. VAT
3
Pad
577492
$4,21 Unit Price incl. VAT
4
Screw w/ flange M6x25
414837
Not Available
5
COMPLETE TOOLS KIT ROLL
665796
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
