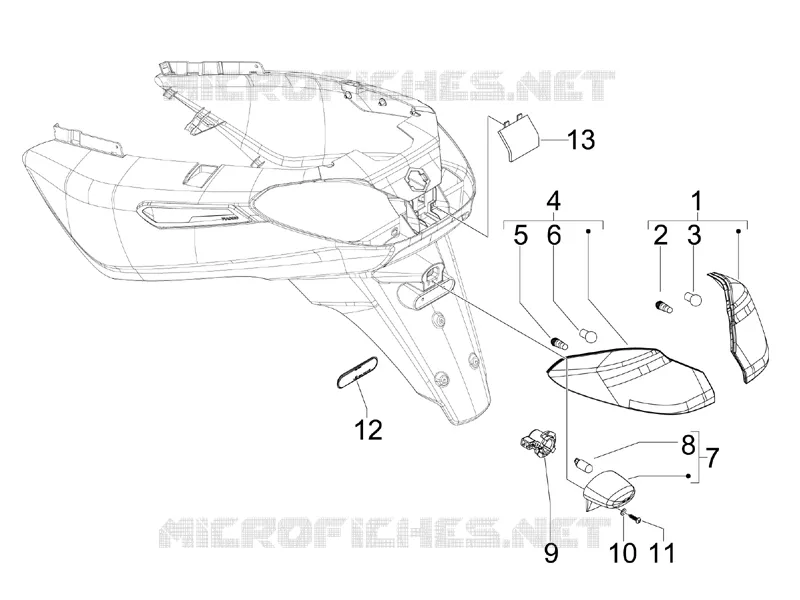

Rear headlamps - Turn signal lamps
1
2
3
4
5
6
7
8
9
10
11
12
13
1
RIGHT TAIL LIGHT
640742
Not Available
2
Lamp 12V-21/5W
129953
$7,81 Unit Price incl. VAT
3
Lamp 12V-10W
181746
$3,28 Unit Price incl. VAT
4
LEFT TAIL LIGHT
640743
Not Available
5
Lamp 12V-21/5W
129953
$7,81 Unit Price incl. VAT
6
Lamp 12V-10W
181746
$3,28 Unit Price incl. VAT
7
Rear licence plate light
640595
Not Available
8
Lamp 12V-5W
292022
Not Available
9
Fairlead
231134
Not Available
10
Washer 4,3x8x0,5
003054
$0,08 Unit Price incl. VAT
11
Self tapping screw M4x16
267115
$2,99 Unit Price incl. VAT
12
Rear retroreflector
582058
Not Available
13
CLOSING ELEMENT FOR REAR LAMP
654554
$9,00 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
