1
Engine displacement
350
2
Model
X10
3
Year
2015
4
Trim
X10 4T 4V I.E. E3
5
Parts Catalog
Remote control switches - Battery - Horn
6
Parts Diagram
Parts Catalog
Stand/s
by
Locks

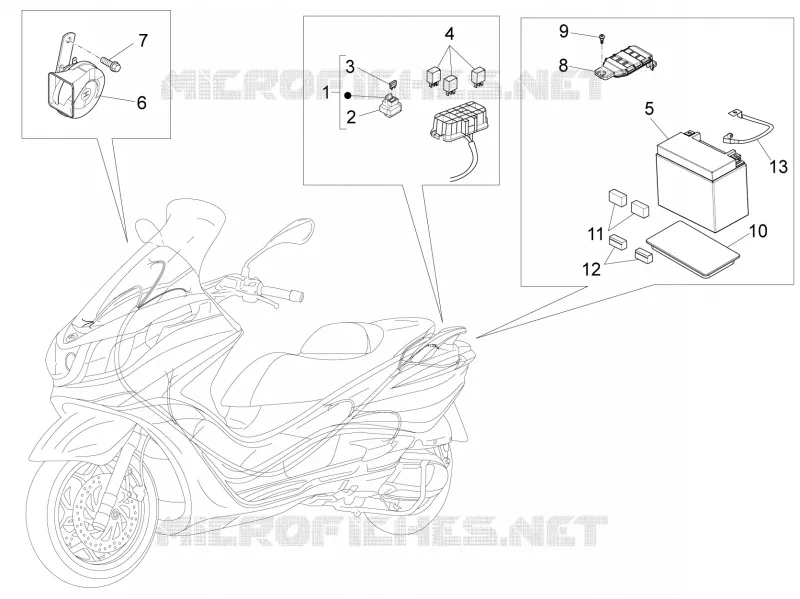

Remote control switches - Battery - Horn
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Starter relay
582690
$27,87 Unit Price incl. VAT
2
Flexible support
582906
Not Available
3
Fuse 30A
581440
Not Available
4
Microrelay with resistance 12V-30A
642093
$8,16 Unit Price incl. VAT
5
Battery (Yuasa) 12V-10Ah
583158
$278,17 Unit Price incl. VAT
6
Warning horn 12V
643266
Not Available
7
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
8
Battery bracket
674032
$3,56 Unit Price incl. VAT
9
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
10
Battery adapter
654139
$2,77 Unit Price incl. VAT
11
Stop buffer
259568
Not Available
12
Pad
258737
Not Available
13
Battery positive cable
643275
$7,12 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
