Engine displacement
350
2
Model
X10
3
Year
2015
4
Trim
X10 4T 4V I.E. E3
5
Parts Catalog
Helmet huosing - Undersaddle
6

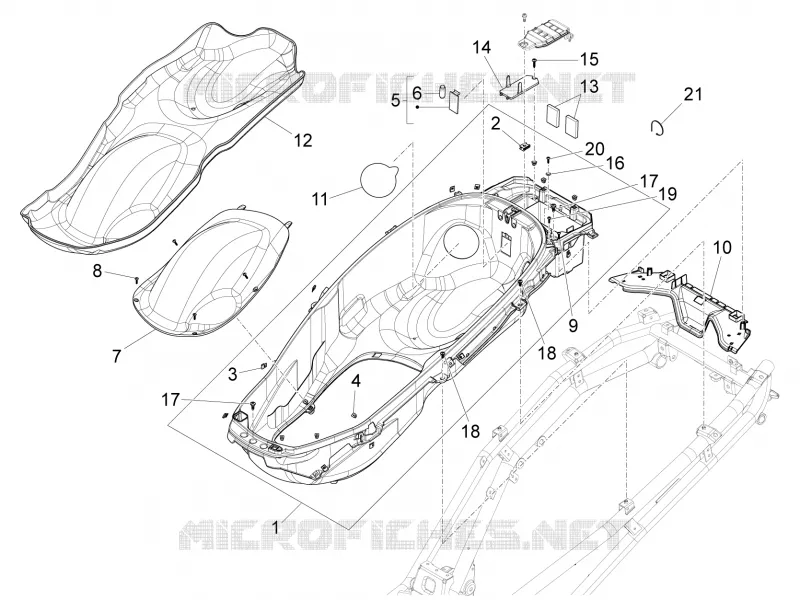

Parts Diagram
Parts Catalog
Rocking levers support unit
by
Swinging arm
Helmet huosing - Undersaddle
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
18
19
20
21
1
Complete helmet compartment
673362
$94,66 Unit Price incl. VAT
2
Spring plate M6
254485
$0,34 Unit Price incl. VAT
3
Spring plate
CM017410
$0,34 Unit Price incl. VAT
4
Expansion plug
157716
$0,08 Unit Price incl. VAT
5
Ceiling bowl
293154
$10,35 Unit Price incl. VAT
6
Torpedo shaped lamp 12V-5W
071633
$8,81 Unit Price incl. VAT
7
Engine access cover
673364
$20,25 Unit Price incl. VAT
8
Self tapping screw D4.2x13
CM178603
$0,16 Unit Price incl. VAT
9
Self tapping screw D4.2x13
CM178603
$0,16 Unit Price incl. VAT
10
Tyre
674241
$6,24 Unit Price incl. VAT
11
Cover
674233
$3,94 Unit Price incl. VAT
12
Helmet compartment mat
675023
Not Available
13
Pad
258737
Not Available
14
Top cover
673361
$4,54 Unit Price incl. VAT
15
Self tapping screw D4.2x13
CM178603
$0,16 Unit Price incl. VAT
16
Washer
297029
$3,70 Unit Price incl. VAT
17
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
18
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
19
Self tapping screw D4x16
CM180701
$0,16 Unit Price incl. VAT
20
Metric screw TBC
CM179302
$0,55 Unit Price incl. VAT
21
Hose clamp
657229
$1,35 Unit Price incl. VAT
21
Spring
CM013201
$0,40 Unit Price incl. VAT
