1
Engine displacement
50
2
Model
TYPHOON
3
Year
2010
4
Trim
Typhoon 2T Euro 2
5
Parts Catalog
Driving pulley
6
Parts Diagram
Parts Catalog
Cylinder head cover
by
Driven pulley

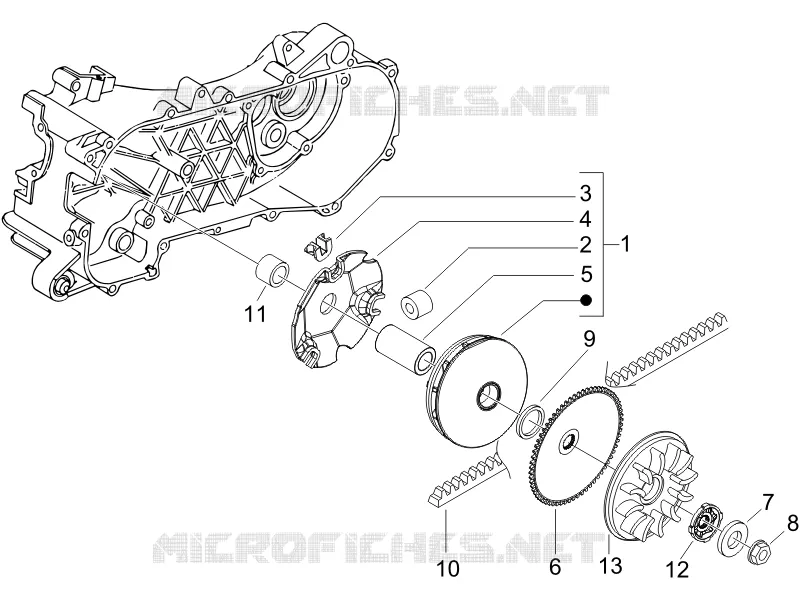

Driving pulley
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Half-pulley assy., driving
CM110301
$75,60 Unit Price incl. VAT
2
Rollers kit
CM1102025
$21,20 Unit Price incl. VAT
3
Sliding block
289931
$4,82 Unit Price incl. VAT
4
Roller contrast
480227
$12,88 Unit Price incl. VAT
5
Spacer
480230
$15,54 Unit Price incl. VAT
6
Fixed driving half pulley
479561
$12,19 Unit Price incl. VAT
7
Washer
265300
$2,99 Unit Price incl. VAT
8
Flanged nut M10x1,25
289519
$0,56 Unit Price incl. VAT
9
Spacer 25 KM/H
CM100610
$3,65 Unit Price incl. VAT
10
V-belt
436864
$13,99 Unit Price incl. VAT
11
Spacer
479495
$1,44 Unit Price incl. VAT
12
Teethed bush
877075
Not Available
13
Fan
845611
$2,02 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
