1
Engine displacement
50
2
Model
TYPHOON
3
Year
2010
4
Trim
Typhoon 2T Euro 2
5
Parts Catalog

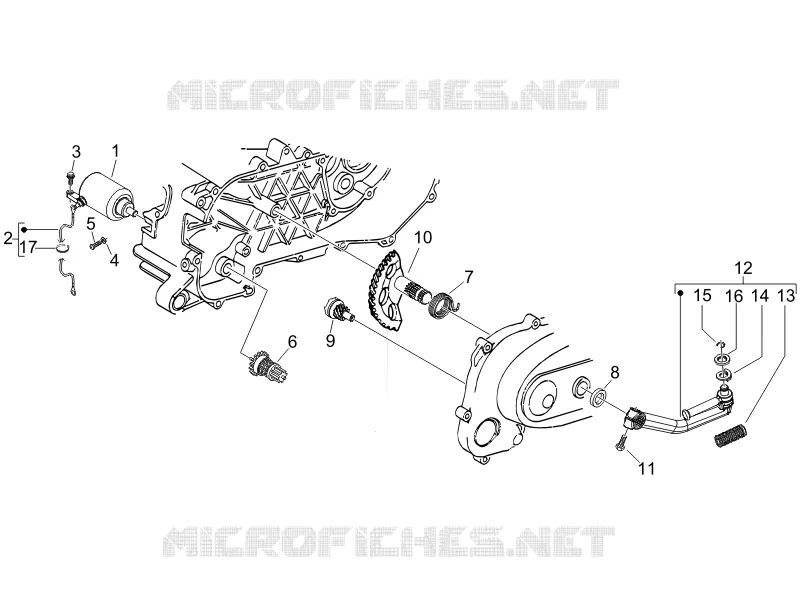

Stater - Electric starter
6
Parts Diagram
Parts Catalog
Oil pump
by
Flywheel magneto
Stater - Electric starter
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Starter motor
82530R
$113,40 Unit Price incl. VAT
2
Relay-starter motor cable
639220
Not Available
3
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
4
Flat washer 4,2x7,6x0,9
016404
$0,42 Unit Price incl. VAT
5
screw
018644
$3,70 Unit Price incl. VAT
6
Starter motor gear
82531R
Not Available
7
Starter lever return spring
289495
$15,81 Unit Price incl. VAT
8
Washer 16,3x23,8
433987
$2,99 Unit Price incl. VAT
9
Pinion starter
483537
$8,63 Unit Price incl. VAT
10
Starting shaft
831458
$14,39 Unit Price incl. VAT
11
Screw w/ flange M6x25
414837
Not Available
12
Starter lever
286214
$22,19 Unit Price incl. VAT
13
Guard
286217
$5,45 Unit Price incl. VAT
14
Spring
286218
Not Available
15
Washer 10,1x2,5
286219
$8,12 Unit Price incl. VAT
16
Ring
288041
$3,70 Unit Price incl. VAT
17
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
