1
Engine displacement
125
2
Model
TYPHOON
3
Year
2011
4
Trim
Typhoon 4T 2V Euro 3
5
Parts Catalog
Flywheel magneto cover - Oil filter
6
Parts Diagram
Parts Catalog
Remote control switches - Battery - Horn
by
Handlebars - Master cil.

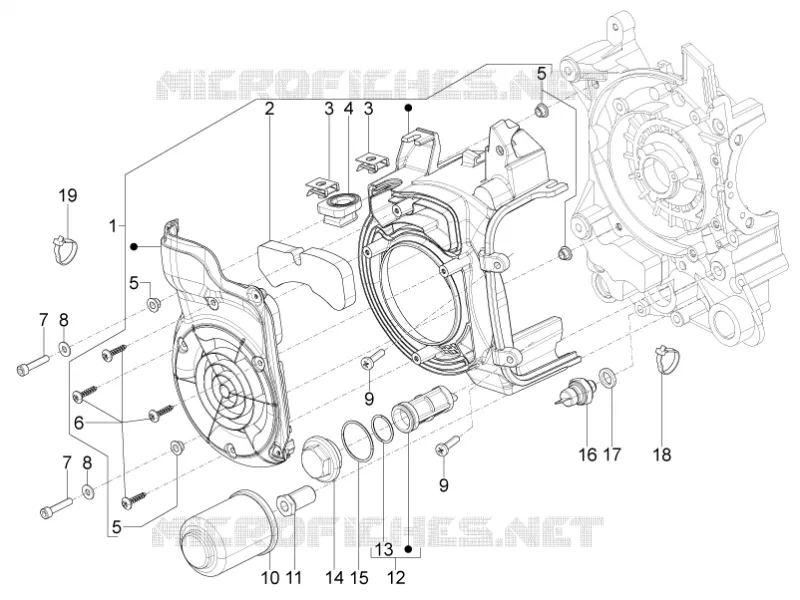

Flywheel magneto cover - Oil filter
1
2
3
3
4
5
5
5
6
7
7
8
8
9
9
10
11
12
13
14
15
16
17
18
19
1
Complete air duct
834473
$22,07 Unit Price incl. VAT
2
Filtering element
832703
$2,12 Unit Price incl. VAT
3
Spring plate M6
254485
$0,34 Unit Price incl. VAT
4
Gasket
833802
$3,05 Unit Price incl. VAT
5
Bush
843757
$1,44 Unit Price incl. VAT
6
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
7
Hex socket screw M5x25
486972
$0,09 Unit Price incl. VAT
8
Washer Ø5xØ12x1.1
828583
$0,08 Unit Price incl. VAT
9
Screw M5x22
828662
$0,25 Unit Price incl. VAT
10
Oil filter
82635R
$12,36 Unit Price incl. VAT
11
Special screw
483776
$1,49 Unit Price incl. VAT
12
Intake oil filter
483841
$3,55 Unit Price incl. VAT
13
O-ring 20,35x1,78
288474
$0,08 Unit Price incl. VAT
14
Oil filter plug
826165
$5,88 Unit Price incl. VAT
15
O-ring 31,47x1,78
285536
$0,92 Unit Price incl. VAT
16
Oil pressure sensor
641541
Not Available
17
Washer 10.5X16X2.5
486075
$1,58 Unit Price incl. VAT
18
Hose clamp
825481
$3,38 Unit Price incl. VAT
19
Hose clamp
847778
$0,33 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
