Engine displacement
125
2
Model
TYPHOON
3
Year
2011
4
Trim
Typhoon 4T 2V Euro 3
5
Parts Catalog
Swinging arm
6

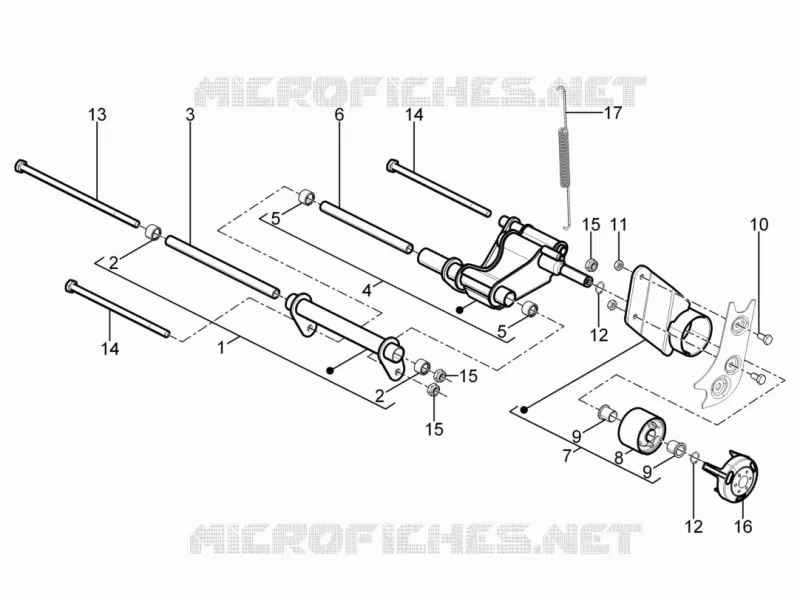

Parts Diagram
Parts Catalog
Engine, assembly
by
Rocking levers support unit
Swinging arm
1
2
2
3
4
5
5
6
7
8
9
9
10
11
12
12
13
14
14
15
15
15
16
17
1
Chassis side swinging arm
597499
Not Available
2
Roller cage
56127R
$5,55 Unit Price incl. VAT
3
Spacer L=228 mm
CM067803
$11,11 Unit Price incl. VAT
4
Engine side swinging arm
860902
Not Available
5
Roller cage
597374
Not Available
6
Spacer L=183 mm
CM067801
$6,51 Unit Price incl. VAT
7
Silent block support bracket
664219
$173,28 Unit Price incl. VAT
8
Silent-block
272750
$12,52 Unit Price incl. VAT
9
Bush
273460
$0,75 Unit Price incl. VAT
10
Hex screw M8x2,5
295409
Not Available
11
Nut
272176
$3,70 Unit Price incl. VAT
12
Circlip
006416
$0,08 Unit Price incl. VAT
13
Hex screw M10x245
563977
$3,70 Unit Price incl. VAT
14
Hex screw M10x202
271807
$4,41 Unit Price incl. VAT
15
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
16
Swinging arm cover
597016
Not Available
17
Spring
856446
$4,89 Unit Price incl. VAT
