1
Engine displacement
50
2
Model
NRG
3
Year
2011
4
Trim
NRG Power Pure jet
5
Parts Catalog
Side cover - Spoiler
6
Parts Diagram
Parts Catalog
Front glove-box - Knee-guard panel
by
Front headlamps - Turn signal lamps
Side cover - Spoiler
1
2
3
4
4
5
6
9
10
12
13
14
15
16
17
18
19
19
20
21
22
22
23
23
24
24
25
26
27
28
29
30
30
1
RH side panel
959339000G
Not Available
2
LH side panel
959337000G
Not Available
3
VITE
258249
$0,09 Unit Price incl. VAT
4
VITE TCIC M6X10
959614
$3,70 Unit Price incl. VAT
5
PIASTRINA ELASTICA
CM017410
$0,34 Unit Price incl. VAT
6
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
9
VITE AUTOF.CON TAGLIO A CROCE 3,5x13
297498
$0,08 Unit Price incl. VAT
10
Lateral reflector
293556
Not Available
12
VITE AUTOF.CON TAGLIO A CROCE 3,5x13
297498
$0,08 Unit Price incl. VAT
13
Lateral reflector
293556
Not Available
14
SOTTOFIANCO DX.
9593430043
$4,05 Unit Price incl. VAT
15
SOTTOFIANCO SX.
9593420043
$4,21 Unit Price incl. VAT
16
SEMICODA DX
95934100EZ
$65,97 Unit Price incl. VAT
16
Right undertail section
95934100AO
Not Available
16
Right undertail section
95934100BR
Not Available
16
SEMICODA DX
9593410090
$40,90 Unit Price incl. VAT
16
SEMICODA DX
959341
$9,58 Unit Price incl. VAT
17
left semi tail fairing
95934000BR
Not Available
17
left semi tail fairing
95934000EZ
Not Available
17
left semi tail fairing
9593404090
Not Available
17
SEMICODA SX
959340
$39,37 Unit Price incl. VAT
17
left semi tail fairing
95934000AO
Not Available
18
VITE METRICA CON CODOLO
575249
$0,66 Unit Price incl. VAT
19
VITE
258249
$0,09 Unit Price incl. VAT
20
SPOILER DX
652887
$15,93 Unit Price incl. VAT
20
SPOILER DX
65288700BR
$65,75 Unit Price incl. VAT
21
Left spoiler
65288600BR
Not Available
21
SPOILER SX
652886
$15,93 Unit Price incl. VAT
22
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
23
VITE AUTOF. TCCIC D4,2x13 UNI 947
259349
$0,17 Unit Price incl. VAT
24
VITE METRICA CON CODOLO
575249
$0,66 Unit Price incl. VAT
25
CHIUSURA INF.SPOILER
959579
$13,36 Unit Price incl. VAT
26
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
27
VITE METRICA CON INT.A CROCE M6x16.
272836
$3,70 Unit Price incl. VAT
28
VITE METRICA CON CODOLO
575249
$0,66 Unit Price incl. VAT
29
PIASTRINA ELASTICA
959359
$0,17 Unit Price incl. VAT
30
PIASTRINA ELASTICA
CM017410
$0,34 Unit Price incl. VAT

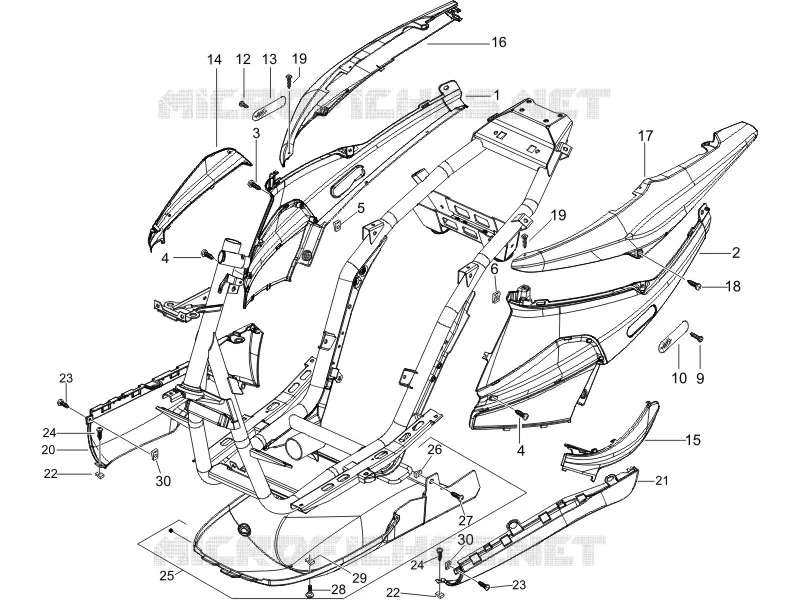

Find the detailed Side cover - Spoiler GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
