Crankcase for GILERA PIAGGIO VESPA NRG Power Pure jet from 2011

Crankcase

1

Crankcase assembly

8440565

Not Available

2

Pin 6,5x9,5x15

239388

Not Available

3

DISTANZIALE

266625

$3,70 Unit Price incl. VAT

4

SILENTBLOC PER AMMORTI

267823

$4,92 Unit Price incl. VAT

5

DADO M6 H=6 k7

020006

$0,34 Unit Price incl. VAT

6

DADO M8-6H

020008

$0,08 Unit Price incl. VAT

7

ANELLO DI RITEGNO

829376

$0,19 Unit Price incl. VAT

8

Stud bolt

877283

$3,65 Unit Price incl. VAT

9

SILENTBLOC ATT.MOTORE

486081

$6,73 Unit Price incl. VAT

10

ANELLO DI RITEGNO

829377

$0,19 Unit Price incl. VAT

11

BUSSOLA (GRUPPO RINVIO)

431860

$3,70 Unit Price incl. VAT

12

ANELLO TENUTA COMPL.

4352035

$5,09 Unit Price incl. VAT

14

screw

414835

$0,15 Unit Price incl. VAT

15

Gasket

000397

Not Available

16

ANELLO ELASTICO 47x50,5x1,75

006647

$1,10 Unit Price incl. VAT

17

VITE TCEI (M8x12)

269755

$0,34 Unit Price incl. VAT

18

CUSCINETTO 20X47X14

434735

$7,12 Unit Price incl. VAT

19

ANELLO DI TENUTA k2

478498

$8,12 Unit Price incl. VAT

20

ASTA LIVELLO OLIO COMPL.

832130

$2,94 Unit Price incl. VAT

21

ANELLO DI TENUTA (O-RING)

827085

$2,99 Unit Price incl. VAT

22

VALVOLA INGRESSO OLIO CARTER

82768R

$15,74 Unit Price incl. VAT

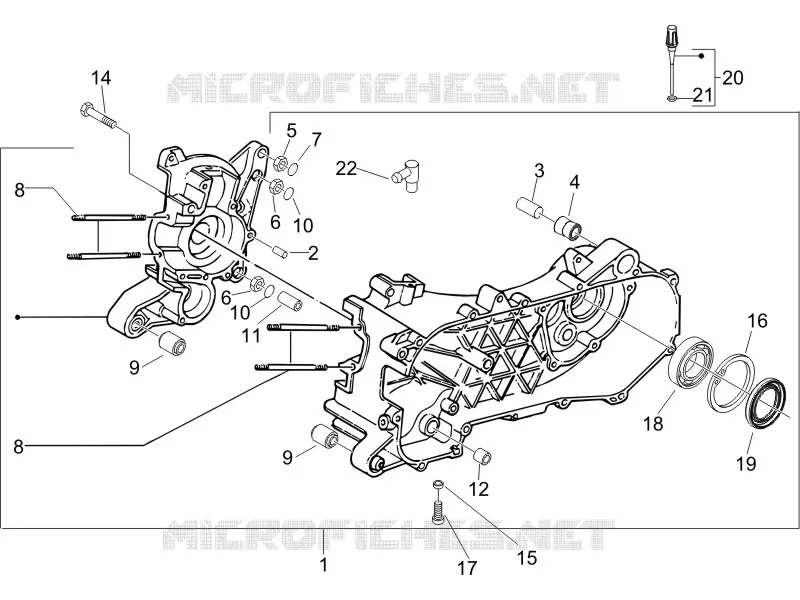

Find the detailed Crankcase GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
