Handlebars - Master cil. for GILERA PIAGGIO VESPA NRG Power Pure Jet from 2007

Handlebars - Master cil.

1

Handlebar with U.P.

582116

Not Available

2

Flat elastic washer with internal toothing 17x10,3x2

012543

$0,08 Unit Price incl. VAT

3

Nut M10

015330

$0,25 Unit Price incl. VAT

4

Flat washer

178790

$0,51 Unit Price incl. VAT

5

Hex socket screw

655554

$3,70 Unit Price incl. VAT

5

screw

223605

Not Available

6

Self tapping screw L=20 mm

267958

$0,25 Unit Price incl. VAT

8

Front brakes pump assembly (Heng Tong)

CM074901

$125,55 Unit Price incl. VAT

9

Fr. br. lever GRIMECA

646803

$90,45 Unit Price incl. VAT

9

Brake lever

646833

Not Available

10

Rear master cylinder Heng Tong

CM074801

$180,90 Unit Price incl. VAT

11

Brake lever

646833

Not Available

12

End terminal

271433

$20,41 Unit Price incl. VAT

13

screw M6x55

271434

Not Available

14

Complete throttle control sleeve

CM060964

Not Available

15

Screw with bushing

123394

$3,70 Unit Price incl. VAT

16

Grip, l.h.

271452

$13,37 Unit Price incl. VAT

17

Grip, r.h.

271453

$13,37 Unit Price incl. VAT

18

Ring 38,3x27x1,2

562923

$2,99 Unit Price incl. VAT

19

Throttle transmiss.

581539

$10,37 Unit Price incl. VAT

20

Terminal

114256

Not Available

21

Guard

147511

$2,95 Unit Price incl. VAT

22

Adjuster screw

269145

$1,30 Unit Price incl. VAT

23

Nut M6

020206

$0,08 Unit Price incl. VAT

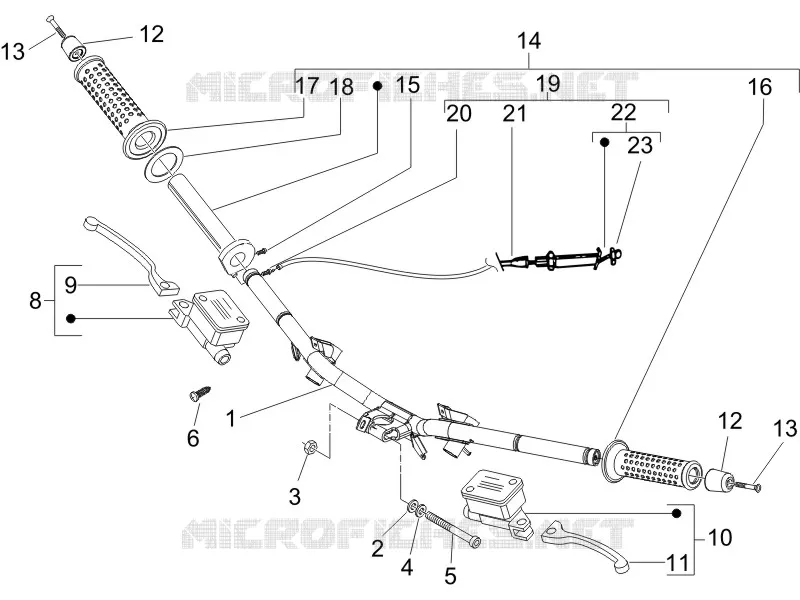

Find the detailed Handlebars - Master cil. GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
