Supply system for GILERA PIAGGIO VESPA NRG Power Pure Jet from 2007

Supply system

1

Fuel pump

CM120901

$85,05 Unit Price incl. VAT

2

Screw m16x16

015558

$3,65 Unit Price incl. VAT

3

Washer

007631

Not Available

4

Maintenance

959264

$3,45 Unit Price incl. VAT

5

Screw M5x10

018575

$2,95 Unit Price incl. VAT

6

Spring washer 8,5x5,1x1,5

016405

$0,08 Unit Price incl. VAT

7

Fuel pump

640514

$773,10 Unit Price incl. VAT

7

Fuel pump

834885

$504,21 Unit Price incl. VAT

8

Maintenance

577753

$2,63 Unit Price incl. VAT

9

Bracket

959519

Not Available

10

Screw w/ flange M6x14

833722

Not Available

11

Maintenance

959522

Not Available

12

Screw w/ flange

433477

$0,19 Unit Price incl. VAT

13

Self locking nut M5

241937

Not Available

14

Fuel filter

270423

$10,67 Unit Price incl. VAT

15

joint.p.

959525

$1,43 Unit Price incl. VAT

16

Hose clamp

CM001905

$1,38 Unit Price incl. VAT

17

spacer

959534

$0,50 Unit Price incl. VAT

18

petrol tube

959538

$23,98 Unit Price incl. VAT

21

petrol tube

959540

$18,84 Unit Price incl. VAT

23

Hose clamp

CM002905

$0,42 Unit Price incl. VAT

24

Fuel tube

CM004103

Not Available

25

Spring

CM013201

$0,40 Unit Price incl. VAT

26

Flexible support

272842

$5,38 Unit Price incl. VAT

27

Hose clamp

573918

$1,09 Unit Price incl. VAT

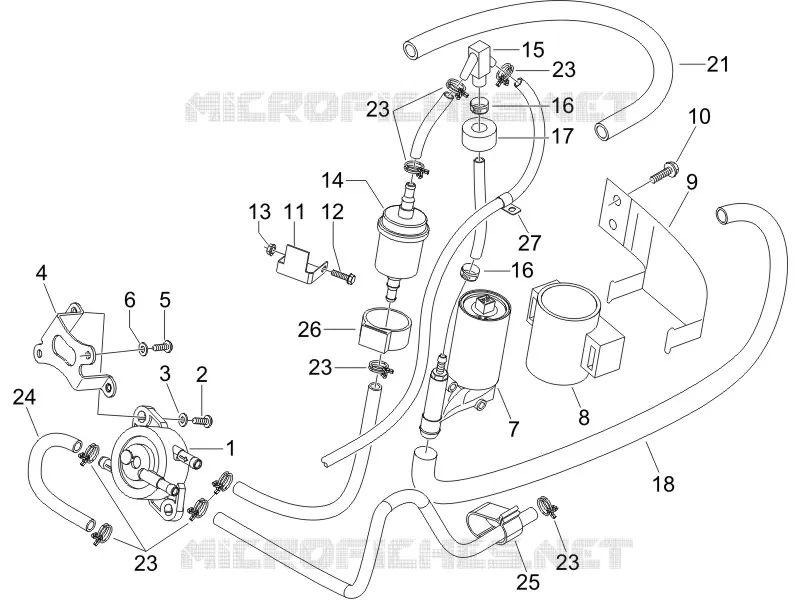

Find the detailed Supply system GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
