1
Engine displacement
50
2
Model
NRG
3
Year
2005
4
Trim
NRG Power Pure Jet
5
Parts Catalog
Driving pulley
6
Parts Diagram
Parts Catalog
Front wheel
by
Stater - Electric starter

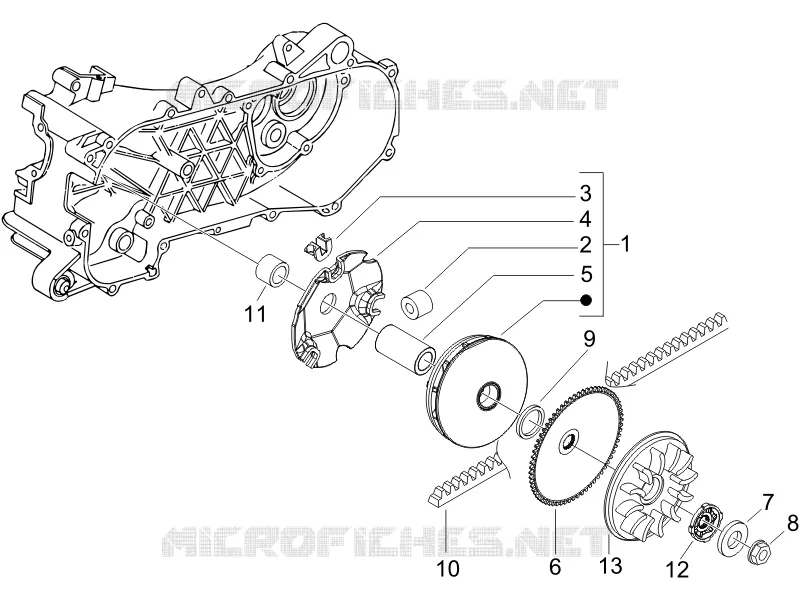

Driving pulley
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Half-pulley assy., driving
CM110304
$71,24 Unit Price incl. VAT
2
Rollers kit
CM1102035
$23,66 Unit Price incl. VAT
3
Sliding block
289931
$4,82 Unit Price incl. VAT
4
Roller contrast
480227
$12,88 Unit Price incl. VAT
5
Spacer
480230
$15,54 Unit Price incl. VAT
6
Fixed driving half pulley
479561
$12,19 Unit Price incl. VAT
7
Washer
265300
$2,99 Unit Price incl. VAT
8
Flanged nut M10x1,25
289519
$0,56 Unit Price incl. VAT
9
Spacer 30 KM/H
CM100616
$3,65 Unit Price incl. VAT
10
V-belt
833982
Not Available
11
Spacer
479495
$1,44 Unit Price incl. VAT
12
Toothed bushing
479866
Not Available
13
Fan
845611
$2,02 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
