1
Engine displacement
50
2
Model
NRG
3
Year
2005
4
Trim
NRG Power Pure Jet
5
Parts Catalog

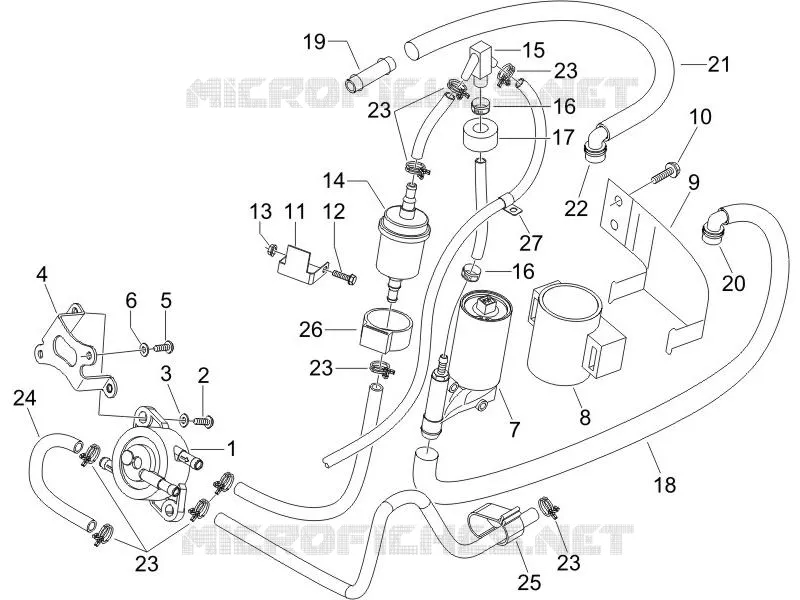

Supply system
6
Parts Diagram
Parts Catalog
Fuel tank
by
Saddle/seats
Supply system
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
23
23
23
24
25
26
27
1
Fuel pump
CM120901
$85,05 Unit Price incl. VAT
2
Screw m16x16
015558
$3,65 Unit Price incl. VAT
3
Washer
007631
Not Available
4
Maintenance
959264
$3,45 Unit Price incl. VAT
5
Screw M5x10
018575
$2,95 Unit Price incl. VAT
6
Spring washer 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
7
Fuel pump
640514
$773,10 Unit Price incl. VAT
7
Fuel pump
834885
$504,21 Unit Price incl. VAT
8
Maintenance
577753
$2,63 Unit Price incl. VAT
9
Bracket
959519
Not Available
10
Screw w/ flange M6x14
833722
Not Available
11
Maintenance
959522
Not Available
12
Screw w/ flange
433477
$0,19 Unit Price incl. VAT
13
Self locking nut M5
241937
Not Available
14
Fuel filter
270423
$10,67 Unit Price incl. VAT
15
joint.p.
959525
$1,43 Unit Price incl. VAT
16
Hose clamp
CM001905
$1,38 Unit Price incl. VAT
17
spacer
959534
$0,50 Unit Price incl. VAT
18
petrol tube
959538
$23,98 Unit Price incl. VAT
19
Fuel feed pipe
577811
$34,88 Unit Price incl. VAT
20
Fuel feed pipe
577811
$34,88 Unit Price incl. VAT
21
petrol tube
959540
$18,84 Unit Price incl. VAT
22
Fuel feed pipe
577811
$34,88 Unit Price incl. VAT
23
Hose clamp
CM002905
$0,42 Unit Price incl. VAT
24
Fuel tube
CM004103
Not Available
25
Spring
CM013201
$0,40 Unit Price incl. VAT
26
Flexible support
272842
$5,38 Unit Price incl. VAT
27
Hose clamp
573918
$1,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
