by

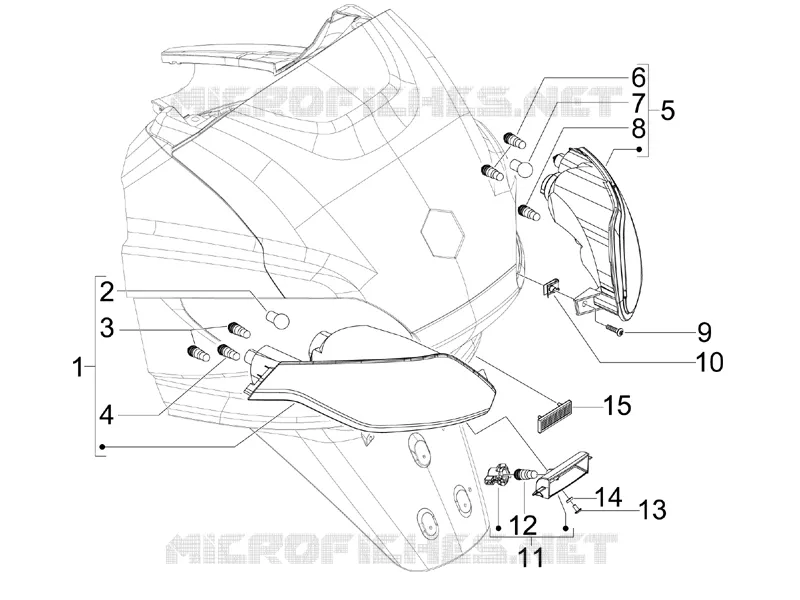

Rear headlamps - Turn signal lamps
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Left rear taillight with turn indicator
642168
$79,10 Unit Price incl. VAT
1
Left rear taillight with turn indicator
640551
Not Available
2
Lamp 12V-10W
181746
$3,28 Unit Price incl. VAT
2
Lamp 12V-21/5W
129953
$7,81 Unit Price incl. VAT
3
Lamp
581904
$6,35 Unit Price incl. VAT
3
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
4
Lamp 12V-5W
292022
Not Available
5
Right taillight with turn indicator
642167
$125,15 Unit Price incl. VAT
5
Right taillight with turn indicator
640550
Not Available
6
Lamp
581904
$6,35 Unit Price incl. VAT
6
Lamp 12V-21/5W
129953
$7,81 Unit Price incl. VAT
7
Lamp 12V-10W
181746
$3,28 Unit Price incl. VAT
7
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
8
Lamp 12V-5W
292022
Not Available
9
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
9
Metric screw TBC
CM179302
$0,55 Unit Price incl. VAT
10
Spring plate M6
254485
$0,34 Unit Price incl. VAT
11
Rear licence plate light
640595
Not Available
12
Lamp 12V-5W
292022
Not Available
13
Self tapping screw M4x16
267115
$2,99 Unit Price incl. VAT
14
Washer 4,3x8x0,5
003054
$0,08 Unit Price incl. VAT
15
Reflector
291081
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
