1
Engine displacement
400
2
Model
MP3
3
Year
2009
4
Trim
MP3 ie MIC
5
Parts Catalog
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
6
Parts Diagram
Parts Catalog
Brakes pipes - Calipers
by
Central cover - Footrests

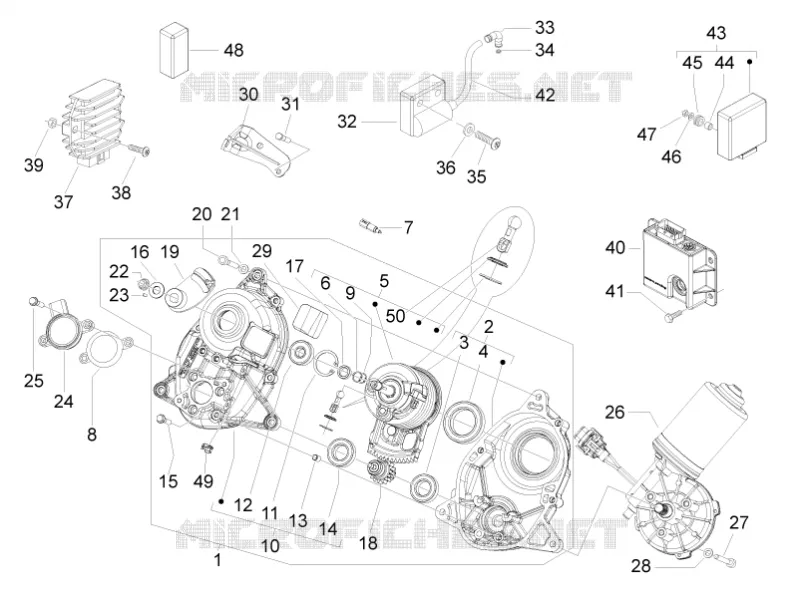

Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
1
Antirolling mechanical device
666533
Not Available
1
Antirolling mechanical device
648642
Not Available
2
Antirolling device box
846939
$246,07 Unit Price incl. VAT
3
Bearing
825232
Not Available
4
Radial ball bearing
846977
$36,45 Unit Price incl. VAT
5
Complete spring unit
648641
$235,32 Unit Price incl. VAT
6
Circlip
006412
$0,09 Unit Price incl. VAT
7
End of the stroke switch
640063
$44,42 Unit Price incl. VAT
8
Rotary sensor gasket
649367
$1,11 Unit Price incl. VAT
9
Circlip
006414
$0,08 Unit Price incl. VAT
10
Antirolling device cover with i.p.
846942
Not Available
11
Snap ring
006632
$0,28 Unit Price incl. VAT
12
Radial ball bearing
843701
$8,51 Unit Price incl. VAT
13
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
14
Bearing
825232
Not Available
15
Screw w/ flange M6x30
289731
Not Available
16
Spacer
646516
$2,06 Unit Price incl. VAT
17
Spacer
846834
$2,06 Unit Price incl. VAT
18
Pinion rod
846980
Not Available
19
Idle lever with i.p.
648957
$27,67 Unit Price incl. VAT
19
Brake control lever with U.P.
649402
$45,50 Unit Price incl. VAT
20
Hex socket screw M6x30
319538
$0,19 Unit Price incl. VAT
21
Spring washer 12x6,4x0,5
006976
$0,08 Unit Price incl. VAT
22
Flanged nut M10x1,25
289519
$0,56 Unit Price incl. VAT
23
Transmission key
000267
$1,19 Unit Price incl. VAT
24
Rotary sensor
846985
Not Available
25
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
26
Anti-roll electric motor
58159R
$339,46 Unit Price incl. VAT
27
screw M6x75
481032
$1,78 Unit Price incl. VAT
28
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
29
Cover
647190
$5,38 Unit Price incl. VAT
30
Brake transmission stop plate
649025
$4,20 Unit Price incl. VAT
31
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
32
HT coil
58120R
$65,76 Unit Price incl. VAT
33
Screened cap
293845
$6,14 Unit Price incl. VAT
34
Spark.plug protection clamp
641219
$4,82 Unit Price incl. VAT
35
Hex screw M6x18
031089
$2,99 Unit Price incl. VAT
36
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
37
Voltage regulator (SHIND.)
639110
$314,55 Unit Price incl. VAT
38
Self tapping screw M6x35
259708
$3,70 Unit Price incl. VAT
39
Self locking nut M6
241936
$0,08 Unit Price incl. VAT
40
Parking electronic unit
640439
Not Available
41
Screw w/ flange
436788
Not Available
42
H.V. cable
080341
$5,89 Unit Price incl. VAT
43
Electro-actuator control unit
641288
$273,58 Unit Price incl. VAT
44
Spacer
217164
$0,62 Unit Price incl. VAT
45
Pad
217163
$0,54 Unit Price incl. VAT
46
Flat washer 5,2x18x1,5
016686
$2,25 Unit Price incl. VAT
47
Self locking nut M5
241937
Not Available
48
Turn indicator control device with hazard
640221
Not Available
49
Gasket
648800
$15,66 Unit Price incl. VAT
50
Tie with knob
647728
$24,90 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
