Helmet huosing - Undersaddle for GILERA PIAGGIO VESPA MP3 ie LT from 2008

Helmet huosing - Undersaddle

1

LOWER OPENING HELMET

655490

Not Available

2

COVER

655212

$23,06 Unit Price incl. VAT

3

Self tapping screw

270723

Not Available

4

PIASTRINA ELASTICA M6

254485

$0,34 Unit Price incl. VAT

5

GUARNIZIONE

654168

$15,22 Unit Price incl. VAT

6

VITE

640939

$3,65 Unit Price incl. VAT

7

PIASTRINA ELASTICA

CM017410

$0,34 Unit Price incl. VAT

8

TASSELLO

199190

$2,95 Unit Price incl. VAT

9

CINGHIETTA

090854

$8,01 Unit Price incl. VAT

10

COPERCHIO BATTERIA

623178

$8,16 Unit Price incl. VAT

11

Self tapping screw

270723

Not Available

12

COPERCHIO ISP.OMOLOGAZ

576793

$5,38 Unit Price incl. VAT

13

SEDE PERNO PULSANTE

621098

$1,34 Unit Price incl. VAT

14

PERNO PULSANTE

621097

$1,34 Unit Price incl. VAT

15

MOLLA

621099

$0,34 Unit Price incl. VAT

16

TAPPO

575860

$5,38 Unit Price incl. VAT

17

TAPPO DI CHIUSURA

483859

$0,29 Unit Price incl. VAT

18

PLAFONIERA (BAULIERA)

293154

$10,35 Unit Price incl. VAT

19

LAMPADINA A SILURO

071633

$8,81 Unit Price incl. VAT

20

VITE METRICA CON INT.A CROCE M6x16.

272836

$3,70 Unit Price incl. VAT

21

RONDELLA PIANA 20 x 6,5 x 1,5

297029

$3,70 Unit Price incl. VAT

22

VITE METRICA CON CODOLO

575249

$0,66 Unit Price incl. VAT

23

SCATOLA ATTREZZI

623796

$6,30 Unit Price incl. VAT

24

TOOLS SET

648455

$12,42 Unit Price incl. VAT

24

BORSA ATTREZZI COMPLETA

651181

$15,39 Unit Price incl. VAT

25

MOLLETTA

140435

$1,01 Unit Price incl. VAT

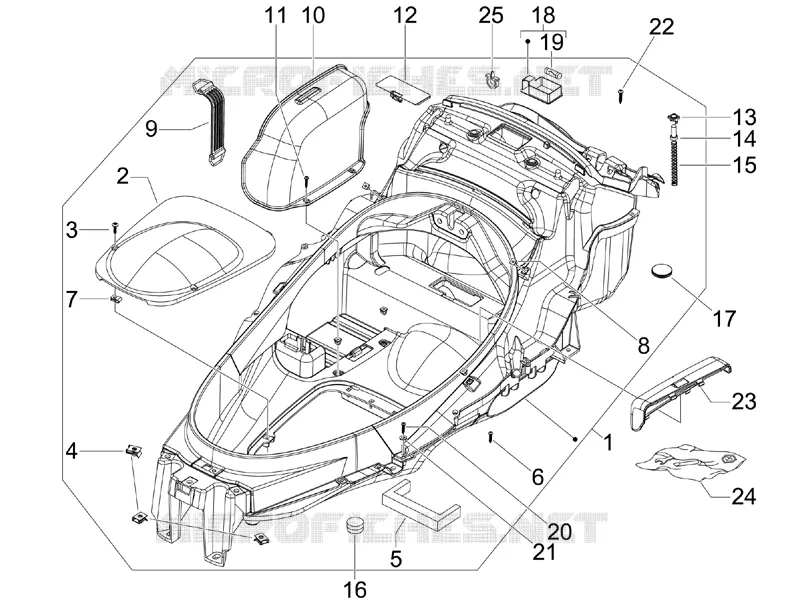

Find the detailed Helmet huosing - Undersaddle GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
